Through-beam sensor photoelectric sensor CPH-TE30MN3
rectangularsquarelaser

Through-beam sensor photoelectric sensor - CPH-TE30MN3 - CHANKO SENSOR - rectangular / square / laser
Through-beam sensor photoelectric sensor - CPH-TE30MN3 - CHANKO SENSOR - rectangular / square / laser
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Characteristics

Sensing mode
through-beam sensor
Housing
rectangular, square
Type of beam
laser
Other characteristics
compact, miniature, waterproof, intrinsically safe, IP67
Applications
for food industry applications, for small parts, for logistics, for robotics, for gate, for packaging machines, for automatic doors
Maximum range

Min.: 0 mm
(0 in)

Max.: 30,000 mm
(98.4 in)

Description

  • 1. **Naming Rule**
  • Detection principle: Through‑beam; Power supply: DC12‑24V.
  • Light source: Red semiconductor laser Class 2 (655 nm).
  • Connection: Cable‑integrated / M12 connector‑A type.
  • ‑ NPN 30 m: CPH‑TE30MN3
  • ‑ PNP 30 m: CPH‑TE30MP3
  • 2. **Available Part Numbers**
  • CPH‑TE30MN3(NPN,30m), CPH‑TE30MP3(PNP,30m);
  • M12‑A connector versions: CPH‑TE30MN3‑A, CPH‑TE30MP3‑A.
  • 3. **Detection Principle**
  • Through‑beam type. Transmitter emits laser beam to receiver. Object detection occurs when the target blocks the laser light path between transmitter and receiver. Standard detect object: opaque object ≥Φ10 mm.
  • 4. **Sensing Range**
  • Sensing distance: 30 m.
  • Spot size: 1*2 mm; Beam pointing angle: 2°.
  • Indicator: Red‑action indicator; Green‑stability indicator; Green power indicator only on transmitter.
  • 5. **Main Model Versions**
  • NPN or PNP transistor open‑collector output; cable‑integrated or M12‑A connector optional.
  • 6. **Key Features**
  • ‑ Small square housing, supply voltage DC12‑24V (ripple(p‑p) ≤10%, DC10‑30V permissible)
  • ‑ Red semiconductor laser Class 2 (655 nm), tiny‑spot for precise positioning
  • ‑ Response time: ≤0.5 ms
  • ‑ Max load current: 100 mA; residual voltage ≤3V (cable 2 m)
  • ‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑25~+65 ℃ (no icing, no condensation)
  • ‑ Protection class: IP65
  • ‑ Built‑in reverse‑connection, surge and short‑circuit protection.
  • 7. **Operation Mode**
  • Light‑ON / Dark‑ON selectable via potentiometer.
  • 8. **Output Options**
  • NPN / PNP transistor open‑collector output, max load current 100 mA.1. **Naming Rule**
  • Detection principle: Through‑beam; Power supply: DC12‑24V.
  • Light source: Red semiconductor laser Class 2 (655 nm).
  • Connection: Cable‑integrated / M12 connector‑A type.
  • ‑ NPN 30 m: CPH‑TE30MN3
  • ‑ PNP 30 m: CPH‑TE30MP3
  • 2. **Available Part Numbers**
  • CPH‑TE30MN3(NPN,30m), CPH‑TE30MP3(PNP,30m);
  • M12‑A connector versions: CPH‑TE30MN3‑A, CPH‑TE30MP3‑A.
  • 3. **Detection Principle**
  • Through‑beam type. Transmitter emits laser beam to receiver. Object detection occurs when the target blocks the laser light path between transmitter and receiver. Standard detect object: opaque object ≥Φ10 mm.
  • 4. **Sensing Range**
  • Sensing distance: 30 m.
  • Spot size: 1*2 mm; Beam pointing angle: 2°.
  • Indicator: Red‑action indicator; Green‑stability indicator; Green power indicator only on transmitter.
  • 5. **Main Model Versions**
  • NPN or PNP transistor open‑collector output; cable‑integrated or M12‑A connector optional.
  • 6. **Key Features**
  • ‑ Small square housing, supply voltage DC12‑24V (ripple(p‑p) ≤10%, DC10‑30V permissible)
  • ‑ Red semiconductor laser Class 2 (655 nm), tiny‑spot for precise positioning
  • ‑ Response time: ≤0.5 ms
  • ‑ Max load current: 100 mA; residual voltage ≤3V (cable 2 m)
  • ‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑25~+65 ℃ (no icing, no condensation)
  • ‑ Protection class: IP65
  • ‑ Built‑in reverse‑connection, surge and short‑circuit protection.
  • 7. **Operation Mode**
  • Light‑ON / Dark‑ON selectable via potentiometer.
  • 8. **Output Options**
  • NPN / PNP transistor open‑collector output, max load current 100 mA.

Catalogs

No catalogs are available for this product.

See all of CHANKO SENSOR‘s catalogs
Go to the CHANKO SENSOR website for more information

Other CHANKO SENSOR products

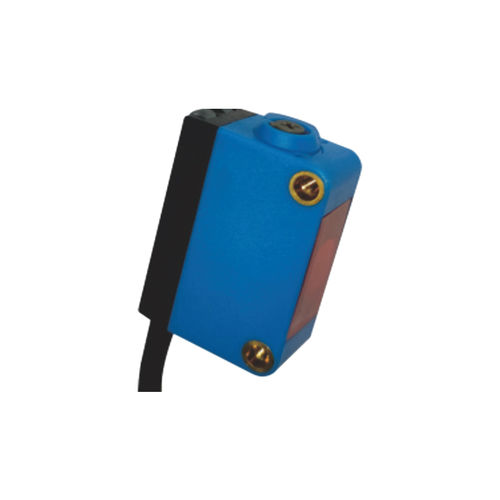

CPH Series Laser Miniature Square Photoelectric Sensor
