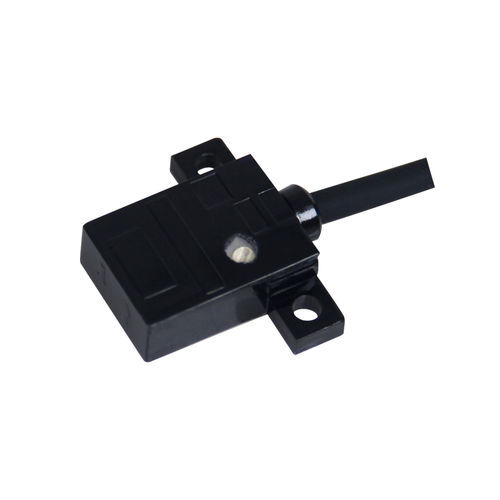

Diffuse reflective photoelectric sensor CPF-DF5N1-A

infrared

1. **Naming Rule**
Detection principle: Diffuse‑reflective photoelectric sensor, front‑end detection.
Connection:2m PVC cable / connector version. Sensing range:5 mm.
‑ NPN Light‑ON: CPF‑DF5N1; NPN Dark‑ON: CPF‑DF5N2
‑ NPN Light‑ON Connector‑type: CPF‑DF5N1‑A; NPN Dark‑ON Connector‑type: CPF‑DF5N2‑A
2. **Available Part Numbers**
CPF‑DF5N1, CPF‑DF5N2, CPF‑DF5N1‑A, CPF‑DF5N2‑A
3. **Detection Principle**
Short‑range diffuse‑reflective sensor with front‑end sensing face. Receives infrared light reflected from target surface. Suitable for narrow installation space where only front‑end face can detect small parts and thin sheets.
4. **Sensing Range**
Sensing distance:5 mm (Detect on white drawing paper). Hysteresis:20%.
Light source: IR LED (850 nm).
Standard detectable object: White drawing paper 50×50 mm.
Indicator: Red action indicator (ON when receiving light); Green stable indicator (ON under stable detection).
5. **Main Model Versions**
NPN / PNP transistor open‑collector output, max load current 100 mA.
Power supply: DC12‑24V (DC10‑30V max), ripple(P‑P) ≤10%.
Consumption current: 15 mA.
6. **Key Features**
‑ Compact short‑distance housing; Housing material: Polycarbonate (PC).
‑ Response frequency: 200 Hz
‑ Protection: Power‑supply reverse‑connection protection, output short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Vibration resistance:10‑55Hz, amplitude1.5 mm, X/Y/Z axis 2 h
‑ Shock resistance:150 m/s², X/Y/Z axis 10 times
‑ Operating temp:‑10~+55 ℃; Storage temp:‑25~+65 ℃(non‑icing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH(non‑condensation)
‑ Protection grade: IP65
‑ Cable: PVC cable, length 2 m / connector‑style
‑ Weight: approx.20 g
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.

>
> Accessories: instruction manual, certificate of compliance.1. **Naming Rule**
