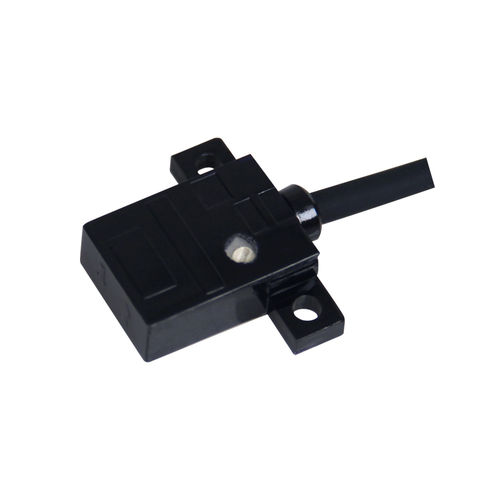

Diffuse reflective photoelectric sensor CPF-DBP5N2-A1

infrared

1. **Naming Rule**
Detection principle: Diffuse-reflective photoelectric sensor, face detection.
Connection: 2m PVC cable / connector version. Sensing range: 35 mm.

- NPN Light-ON cable-type: CPF-DP35N1; NPN Dark-ON cable-type: CPF-DP35N2
- NPN Light-ON connector-type: CPF-DP35N1-A; NPN Dark-ON connector-type: CPF-DP35N2-A

2. **Available Part Numbers**
CPF-DP35N1, CPF-DP35N2, CPF-DP35N1-A, CPF-DP35N2-A
3. **Detection Principle**
Mid-short-range diffuse-reflective sensor. Detects objects by receiving infrared light reflected directly from the target surface. Suitable for general-purpose workpiece and carton presence detection where installation clearance is sufficient.
4. **Sensing Range**
Sensing distance: 35 mm (detect on white drawing paper). Hysteresis: 20%.
Light source: IR LED (850 nm).
Standard detectable object: White drawing paper 50×50 mm.
Indicator: Red action indicator (ON when receiving light); Green stable indicator (ON under stable detection).
5. **Main Model Versions**
NPN / PNP transistor open-collector output, max load current 100 mA.
Power supply: DC12-24V (DC10-30V max), ripple(P-P) ≤10%.
Consumption current: 15 mA.
6. **Key Features**

- Compact short-distance housing; housing material: Polycarbonate (PC).
- Response frequency: 200 Hz
- Protection: Power-supply reverse-connection protection, output short-circuit protection, output reverse-connection protection
- Withstand voltage: AC1000V 50/60Hz, 1 min
- Vibration resistance: 10-55Hz, amplitude 1.5 mm, X/Y/Z axis 2 h
- Shock resistance: 150 m/s², X/Y/Z axis 10 times
- Operating temp: -10~+55 ℃; Storage temp: -25~+65 ℃ (non-icing, non-condensation)
- Humidity: Operating 35-85%RH; Storage 35-95%RH (non-condensation)
- Protection grade: IP65
- Cable: PVC cable, length 2 m / connector-style
- Weight: approx.20 g

7. **Operation Mode**
Light-ON (light-received ON) / Dark-ON (beam-blocked ON).
8. **Output Options**
NPN / PNP transistor open-collector output, max load current 100 mA.

> Accessories: instruction manual, certificate of compliance.
