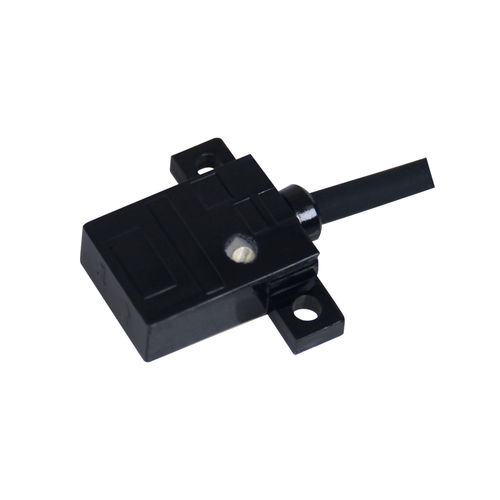

Diffuse reflective photoelectric sensor CPF-DTF30N1

infraredhigh-speedhigh-performance

1. **Naming Rule**
Detection principle: Adjustable diffuse‑reflective photoelectric sensor, front‑end detection.
Connection:2m PVC cable. Sensing range:0‑30 mm adjustable.
‑ NPN Light‑ON: CPF‑DTF30N1; NPN Dark‑ON: CPF‑DTF30N2
2. **Available Part Numbers**
CPF‑DTF30N1, CPF‑DTF30N2
3. **Detection Principle**
Adjustable diffuse‑reflective sensor. Equipped with potentiometer to adjust sensitivity and set effective detecting distance freely. Front‑end‑detection version, fit for narrow cavity‑type installation scenarios.
4. **Sensing Range**
Sensing distance:0‑30 mm adjustable (Detect on white drawing paper). Hysteresis:20%.
Light source: IR LED (850 nm).
Standard detectable object: White drawing paper 50×50 mm.
Indicator: Red action indicator (ON when receiving light); Green stable indicator (ON under stable detection).
5. **Main Model Versions**
NPN transistor open‑collector output, max load current 100 mA.
Power supply: DC12‑24V (DC10‑30V max), ripple(P‑P) ≤10%.
Consumption current: 15 mA.
6. **Key Features**
‑ Potentiometer‑adjustable sensitivity; Housing material: Polycarbonate (PC).
‑ Response frequency: 200 Hz
‑ Protection: Power‑supply reverse‑connection protection, output short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Vibration resistance:10‑55Hz, amplitude1.5 mm, X/Y/Z axis 2 h
‑ Shock resistance:150 m/s², X/Y/Z axis 10 times
‑ Operating temp:‑10~+55 ℃; Storage temp:‑25~+65 ℃(non‑icing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH(non‑condensation)
‑ Protection grade: IP65
‑ Cable: PVC cable, length 2 m
‑ Weight: approx.20 g
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN transistor open‑collector output, max load current 100 mA.

> Accessories: instruction manual, certificate of compliance.
