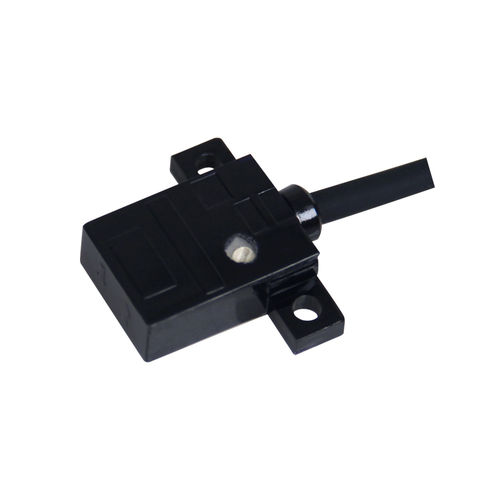

Diffuse reflective sensor photoelectric sensor CPF-DP5N1

diffuse reflectivediffuserectangular

1. **Naming Rule**
Detection principle: Diffuse‑reflective photoelectric sensor, face detection.
Connection:2m PVC cable / connector version. Sensing range:5 mm.
‑ NPN Light‑ON: CPF‑DP5N1; NPN Dark‑ON: CPF‑DP5N2
‑ NPN Light‑ON Connector‑type: CPF‑DP5N1‑A; NPN Dark‑ON Connector‑type: CPF‑DP5N2‑A
2. **Available Part Numbers**
CPF‑DP5N1, CPF‑DP5N2, CPF‑DP5N1‑A, CPF‑DP5N2‑A
3. **Detection Principle**
Short‑range diffuse‑reflective sensor. Detects target objects by receiving infrared light reflected directly from object surface. Designed for paper‑in‑out detection of printers and small‑size workpiece presence detection.
4. **Sensing Range**
Sensing distance:5 mm (Detect on white drawing paper). Hysteresis:20%.
Light source: IR LED (850 nm).
Standard detectable object: White drawing paper 50×50 mm.
Indicator: Red action indicator (ON when receiving light); Green stable indicator (ON under stable detection).
5. **Main Model Versions**
NPN / PNP transistor open‑collector output, max load current 100 mA.
Power supply: DC12‑24V (DC10‑30V max), ripple(P‑P) ≤10%.
Consumption current: 15 mA.
6. **Key Features**
‑ Compact short‑distance housing; Housing material: Polycarbonate (PC).
‑ Response frequency: 200 Hz
‑ Protection: Power‑supply reverse‑connection protection, output short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz, 1 min
‑ Vibration resistance:10‑55Hz, amplitude1.5 mm, X/Y/Z axis 2 h
‑ Shock resistance:150 m/s², X/Y/Z axis 10 times
‑ Operating temp:‑10~+55 ℃; Storage temp:‑25~+65 ℃(non‑icing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH(non‑condensation)
‑ Protection grade: IP65
‑ Cable: PVC cable, length 2 m / connector‑style
‑ Weight: approx.20 g
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.

> Accessories: instruction manual, certificate of compliance.
