Inductive proximity sensor CL40-QF15DN3-A/Ksquarewith switching functionNPN
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- square
- Output signal
- with switching function, NPN
- Supply voltage
- 24VDC, 12VDC
- Mounting
- flush
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
Max.: 15 mm
(0.59 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Accessories & documentation

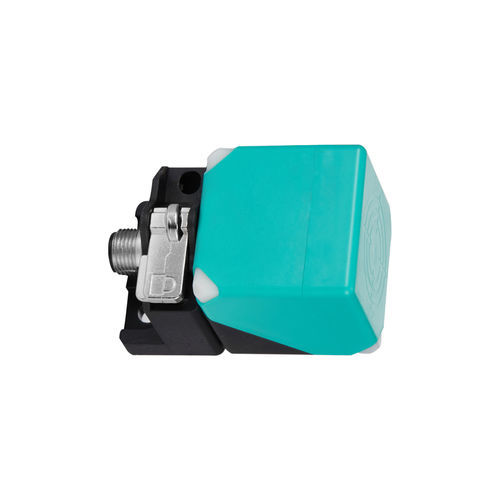

- Model: CL40-QF15DN3-A/K
- Series: CL40 series proximity sensors
- Type: variable detection face
- Sensing principle: inductive
- Detection distance: 15 mm
- Shape: square
- Dimensions: 40 × 40 × 57 mm
- Output: NPN NO/NC
Technical specifications
- Cable length: 0.5 m
- Detection direction: front + top
- Response frequency: 40 Hz
- Response time: 12.5 ms
- Target object: metal
- Hysteresis: < 10% of detection distance
- Standard test object: iron 45 × 45 × 1 mm
- Accessories: certificate
Mechanical / electrical parameters
- Output type: NPN NO/NC
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Ingress protection: IP67
- Connection: connector
- Signal type: switching
- Operating mode: normally open / normally closed
- Mounting: flush / embedded
- Current consumption: < 10 mA
- Indicator: yellow output LED
- Protection: short-circuit and surge protection
- Load current: < 200 mA
- Insulation resistance: > 50 MΩ (DC 500 V)
- Withstand voltage: AC 1000 V 50/60 Hz 1 min (between live parts and housing)
- Shock resistance: 500 m/s X, Y, Z directions ×3
- Vibration resistance: 10–55 Hz double amplitude 1.5 mm X, Y, Z directions 2 h
Operating environment
- Operating temperature: -25 ~ 70 °C
- Operating/storage humidity: 35–95% RH (non-condensing)
Accessories & documentation
- User manual (PDF)
- 3D drawing (STP)
Catalogs
No catalogs are available for this product.
