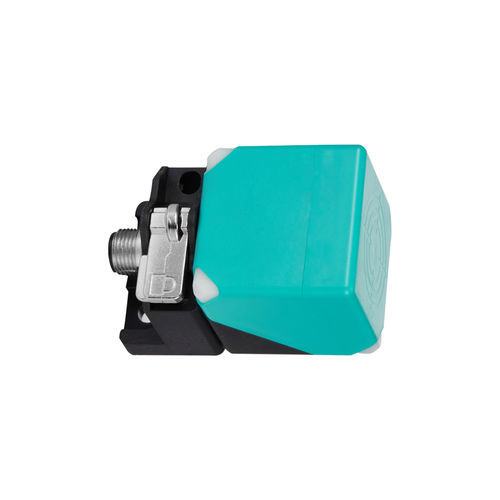

Inductive proximity sensor CL40-QF15DP3-Asquarewith switching functionPNP
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- square
- Output signal
- PNP, with switching function
- Electrical connection
- M12 connector
- Supply voltage
- 24VDC, 12VDC
- Protection level
- IP67
- Other characteristics
- with LED light, 3-wire
- Measuring range
Max.: 15 mm
(0.59 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Key features
Technical specifications
Mechanical / Electrical parameters
Environmental conditions
Additional specifications
- Product name: CL40-QF15DP3-A/K
- Series: CL40 series inductive proximity sensor
Key features
- Sensing type: variable sensing face
- Sensing distance: 15 mm
- Housing: square
- Principle: inductive
- Dimensions: 40 × 40 × 57 mm
- Output: PNP, NO/NC
Technical specifications
- Sensing type: variable sensing face
- Sensing distance: 15 mm
- Housing shape: square
- Principle: inductive
- Overall dimensions: 40 × 40 × 57 mm
- Cable length: 0.5 m
- Sensing faces: front and top
- Response frequency: 40 Hz
- Response time: 12.5 ms
- Detectable targets: metallic objects
- Special feature: variable sensing face
- Accessories: certificate of conformity
- Hysteresis: < 10% of sensing distance
- Reference test object: iron 45 × 45 × 1 mm
Mechanical / Electrical parameters
- Output: PNP, NO/NC
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Ingress protection: IP67
- Connection: connector
- Signal type: switching
- Operating mode: NO/NC
- Mounting: embedded
- Current consumption: < 10 mA
- Indicator: yellow output LED
- Protection: short-circuit and surge protection
- Max load current: < 200 mA
- Insulation resistance: > 50 MΩ (DC 500 V between live parts and housing)
- Shock resistance: 500 m/s², X/Y/Z, 3 times each
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z, 2 h each
Environmental conditions
- Operating temperature: -25 ~ 70 °C
- Operating / storage humidity: 35–95% RH (non-condensing)
Additional specifications
- Model / Series: CL40 series
- Principle: Inductive
- Sensing distance: 15 mm
- Dimensions: 40 × 40 × 57 mm
- Output: PNP, NO/NC
- Supply voltage: DC 12–24 V
- Ingress protection: IP67
- Current consumption: < 10 mA
- Max load current: < 200 mA
- Operating temperature: -25 ~ 70 °C
