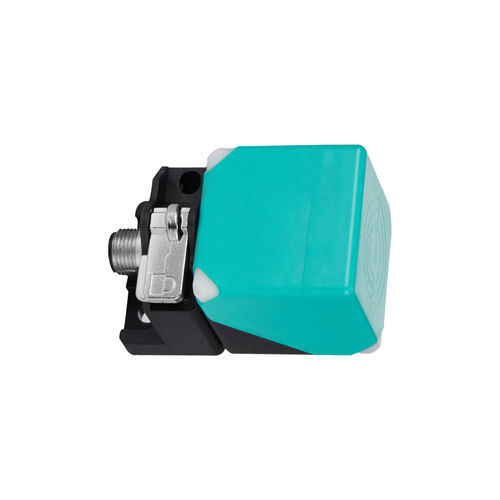

Inductive proximity sensor CL40-QN30DN3-Asquarewith switching functionNPN
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- square
- Output signal
- with switching function, NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- non-flush
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
Min.: 0 mm
(0 in)Max.: 30 mm
(1.18 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product overview
Main features
Mechanical / electrical parameters
Operating environment
Technical specifications
- Model: CL40-QN30DN3-A/K
- Series: CL40 series inductive proximity sensor
Main features
- Sensor type: variable sensing face inductive proximity sensor
- Sensing distance: 30 mm
- Housing shape: square
- Sensing principle: inductive (for metallic targets)
- Detection directions: front and top
- Output: NPN, NO/NC selectable
- Cable length: 0.5 m
- Response frequency: 40 Hz
- Response time: 12.5 ms
- Standard target: iron 120×120×1 mm
- Accessories: conformity certificate
Mechanical / electrical parameters
- Output type: NPN, NO/NC
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Protection rating: IP67
- Connection: connector
- Signal type: switching
- Operating mode: normally open / normally closed
- Mounting: non-flush (non-embedded)
- Current consumption: <10 mA
- Indicator: yellow output indicator
- Protection circuits: short-circuit and power surge protection
- Load current: ≤200 mA
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Dielectric strength: AC 1000 V 50/60 Hz, 1 min (between live parts and housing)
- Shock resistance: 500 m/s², 3 times in X, Y, Z
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h each axis
Operating environment
- Operating temperature: -25 ~ 70 °C
- Humidity: 35–95% RH (no condensation) for operation and storage
Technical specifications
- Model: CL40-QN30DN3-A/K
- Series: CL40
- Sensing distance: 30 mm
- Dimensions: 40 × 40 × 57 mm
- Cable length: 0.5 m
- Output: NPN, NO/NC
- Supply voltage: DC 12–24 V
- Protection rating: IP67
- Frequency: 40 Hz
- Response time: 12.5 ms
- Load current: ≤200 mA
- Current consumption: <10 mA
- Operating temperature: -25 ~ 70 °C
- Humidity: 35–95% RH (no condensation)
