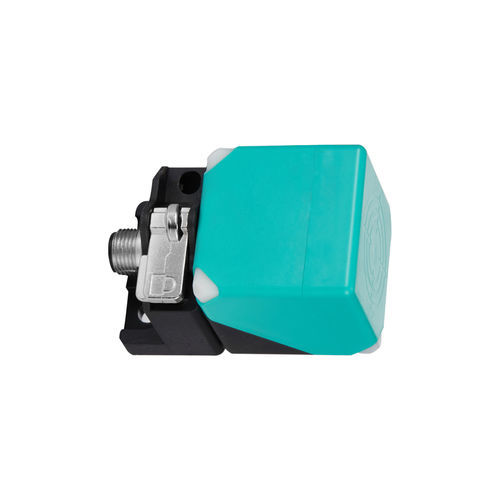

Inductive proximity sensor CL40-QN30DP3-AsquarePNP12VDC
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- square
- Output signal
- PNP
- Supply voltage
- 24VDC, 12VDC
- Mounting
- non-flush
- Other characteristics
- 3-wire
- Measuring range
Max.: 30 mm
(1.18 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product name
CL40-QN30DP3-A/K — CL40 series proximity sensor
Key features
Mechanical / Electrical parameters
Operating environment
Additional information
Features / Technical specifications
CL40-QN30DP3-A/K — CL40 series proximity sensor
Key features
- Product type: adjustable sensing face
- Sensing distance: 30 mm
- Housing shape: square
- Sensing principle: inductive (inductive proximity switch)
- Dimensions: 40×40×57 mm
- Output: PNP NO/NC
- Cable length: 0.5 m (cable/wire length)
- Sensing direction: front + top
- Response frequency: 40 Hz
- Response time: 12.5 ms
- Sensing target: metal objects
- Special feature: adjustable sensing face
- Accessories: certificate of conformity
- Hysteresis: < 10% of sensing distance
- Standard test object: iron 120×120×1 mm
Mechanical / Electrical parameters
- Output type: PNP NO/NC
- Supply voltage: DC 12~24 V
- Power supply: DC three-wire
- Protection rating: IP67
- Connection: connector
- Signal type: switching
- Operating mode: NO / NC
- Mounting: non-flush (non-embedded)
- Current consumption: <10 mA
- Indicator: yellow output LED
- Protection circuits: short-circuit protection, supply surge protection
- Load current: <200 mA
- Insulation resistance: >=50 MΩ (DC500V megger) between live parts and housing
- Shock resistance: 500 m/s², 3 times in X, Y, Z directions
- Dielectric strength: AC1000 V 50/60 Hz 1 min between live parts and housing
- Vibration: 10–55 Hz double amplitude 1.5 mm, X, Y, Z directions 2 h
Operating environment
- Operating temperature: -25 ~ 70 ℃
- Operating/storage humidity: 35–95% RH (no condensation)
Additional information
- Supplied with wiring/output diagram and dimension drawing
- User manual available (downloadable product datasheet)
Features / Technical specifications
- Model: CL40-QN30DP3-A/K from the CL40 series
- Target: metal (standard iron plate 120×120×1 mm for calibration)
- Sensing distance: 30 mm, hysteresis < 10% of sensing distance
- Supply: DC 12~24 V, three-wire DC, PNP output
- Protection & reliability: IP67, short-circuit and surge protection, dielectric strength AC1000 V 1 min
- Environmental suitability: operating temperature -25~70 ℃, humidity 35–95% RH (no condensation)
- Mechanical & mounting: dimensions 40×40×57 mm, non-flush mounting
- Electrical performance: response frequency 40 Hz, response time 12.5 ms, load current <200 mA, current consumption <10 mA
