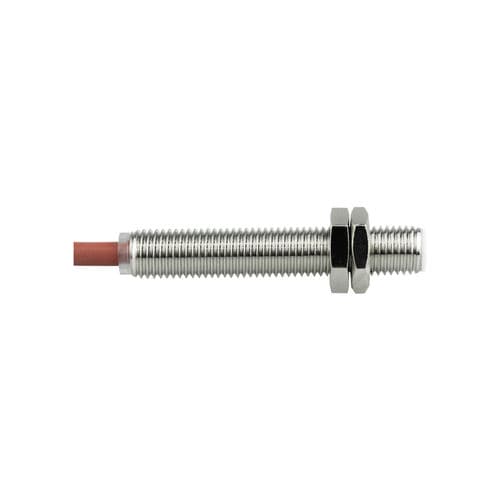

Inductive proximity sensor CL12-RF2DN2-HcylindricalM12digital
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- with switching function, digital, NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- threaded, flush
- Material
- brass, PVC, PTFE
- Protection level
- high-temperature, IP67
- Other characteristics
- high-temperature
- Measuring range
Max.: 2 mm
(0.08 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 120 °C
(248 °F)Min.: 0 °C
(32 °F)
Description
Overview
Main specifications
Mechanical / Electrical parameters
Materials & special requirements
Accessories
Applicable environments & recommended applications
Documentation & drawings
Features / Technical specifications
- Product name: CL12-RF2DN2/H
- Series: CL12 series inductive proximity sensors
- Type: High-temperature model
- Housing: Cylindrical (M12)
- Sensing principle: Inductive
Main specifications
- Sensing distance: 2 mm
- Sensing direction: Face
- Operating frequency: 800 Hz
- Response time: 625 μs
- Detectable target: Metal
- Hysteresis: ≤10% of sensing distance
- Standard target: Fe 12×12×1 mm
Mechanical / Electrical parameters
- Output: NPN NC (normally closed)
- Supply voltage: DC 12–24 V
- Wiring: DC three-wire
- Ingress protection: IP67
- Connection: Molded cable (length: 2 m)
- Signal type: Discrete switch
- Mounting: Embedded
- Current consumption: ≤15 mA
- Indicator: Yellow output LED
- Protection: Short-circuit protection, surge protection
- Voltage influence: Within ±15% of rated supply, sensing distance change within ±1%
- Load current: ≤100 mA
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Shock resistance: 500 m/s, 3 times in X, Y, Z directions
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (live parts to housing)
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, 2 h in X, Y, Z
- Weight: 65 g
Materials & special requirements
- Housing: Brass, nickel plated
- Sensing face: PTFE (Teflon)
- Cable: PVC
- Special requirement: High-temperature operation (ambient: 0–120 °C)
Accessories
- Nut ×2
- Internal tooth washer ×1
- Certificate
Applicable environments & recommended applications
- Operating ambient temperature: 0–120 °C
- Recommended application examples: 3C electronics, automated parking systems, logistics & warehousing (examples for reference)
Documentation & drawings
- Product page includes wiring diagram for output and high-temperature dimensional drawing
- Available: Product manual (PDF) and 3D model (STP)
Features / Technical specifications
- Model: CL12-RF2DN2/H
- Sensing distance: 2 mm
- Form factor: M12 cylindrical
- Output: NPN NC
- Supply: DC 12–24 V, three-wire
- Ingress protection: IP67
- Cable length: 2 m
- Temperature range: 0–120 °C
- Operating frequency / response time: 800 Hz / 625 μs
- Materials: Brass nickel-plated housing, PTFE sensing face, PVC cable
Catalogs
No catalogs are available for this product.
See all of CHANKO SENSOR‘s catalogsOther CHANKO SENSOR products
