Inductive proximity sensor CL12-RF2DL2-H
cylindricalM122-wire

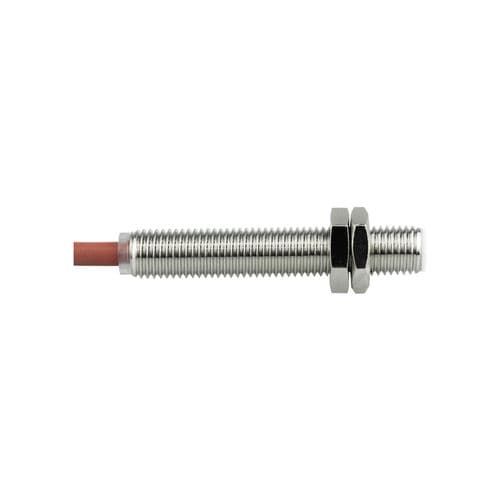

Inductive proximity sensor - CL12-RF2DL2-H - CHANKO SENSOR - cylindrical / M12 / 2-wire
Inductive proximity sensor - CL12-RF2DL2-H - CHANKO SENSOR - cylindrical / M12 / 2-wire
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Characteristics

Technology
inductive
Shape
cylindrical
Diameter
M12
Output signal
2-wire
Supply voltage
DC, 24VDC, 12VDC
Mounting
flush
Material
brass, PVC, PTFE
Protection level
high-temperature, IP67
Other characteristics
high-temperature
Measuring range

Max.: 2 mm
(0.08 in)

Min.: 0 mm
(0 in)

Process temperature

Max.: 120 °C
(248 °F)

Min.: 0 °C
(32 °F)

Description

Product overview
  • Product name: CL12-RF2DL2/H (CL12 series proximity sensor)
  • Type: High-temperature type
  • Sensing distance: 2 mm
  • Housing shape: Cylindrical
  • Detection principle: Inductive
  • Mounting size: M12
  • Output: DC 2-wire NC (two-wire normally closed)


Technical specifications
  • Type: High-temperature type
  • Sensing distance: 2 mm
  • Housing shape: Cylindrical
  • Detection principle: Inductive
  • Mounting size: M12
  • Cable length: 2 m
  • Sensing direction: Frontal
  • Switching frequency: 800 Hz
  • Response time: 625 μs
  • Detectable target: Metal
  • Special feature: High-temperature resistance
  • Accessories: 2 nuts, 1 tooth washer, inspection certificate
  • Hysteresis: Less than 10% of sensing distance
  • Standard target: Iron 12 × 12 × 1 mm
  • Temperature drift: Within ±15% over 0–+120 °C compared to reference at +23 °C
  • Materials: Housing: nickel-plated brass; sensing face: PTFE; cable: PVC


Mechanical/electrical parameters
  • Output: DC 2-wire NC
  • Supply voltage: DC 12–24 V
  • Power type: DC two-wire
  • Ingress protection: IP67
  • Connection: Molded cable
  • Signal type: Switching
  • Operating mode: Normally closed
  • Mounting: Flush/embedded
  • Indicator: Yellow output LED
  • Residual voltage: Below 3 V (below 5 V for non-polarity), at 100 mA load, 2 m cable
  • Voltage influence: Within ±1% detection change for ±15% supply voltage variation
  • Rated load current: 100 mA (with 2 m cable)
  • Insulation resistance: ≥50 MΩ (measured with DC500 V megohmmeter) between live parts and housing
  • Switching capacity: Below 100 mA
  • Leakage current: ≤0.8 mA
  • Shock resistance: 500 m/s², X/Y/Z each direction, 3 times
  • Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
  • Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, X/Y/Z each direction, 2 h
  • Weight: 65 g


Operating environment
  • Ambient temperature range: 0–120 °C


Features/specifications (summary)
  • Model: CL12-RF2DL2/H (CL12 series)
  • Sensing distance: 2 mm
  • Mounting size: M12
  • Output: DC 2-wire NC (normally closed)
  • Supply voltage: DC 12–24 V
  • Ingress protection: IP67
  • Operating temperature: 0–120 °C (high-temperature type)
  • Weight: 65 g
  • Materials: Housing nickel-plated brass; sensing face PTFE; cable PVC
