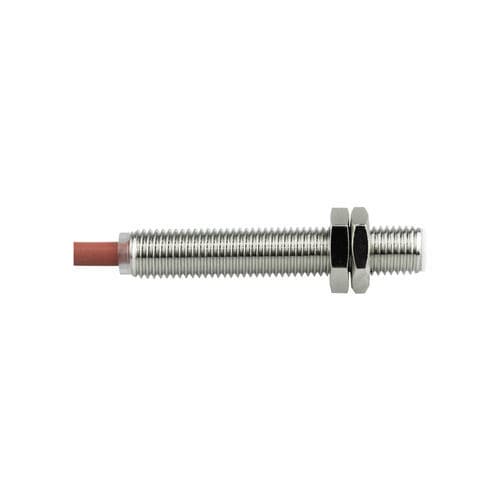

Inductive proximity sensor CL08-RN2DL1/HcylindricalM8digital
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- with switching function, digital, 2-wire
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- non-flush
- Material
- brass, PVC, PTFE
- Other characteristics
- high-temperature
- Measuring range
0.2 cm
(0.08 in)- Process temperature
Max.: 120 °C
(248 °F)Min.: 0 °C
(32 °F)
Description
Overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Accessories
Features / Specification summary
- Product series: CL08 series proximity sensors
- Model: CL08-RN2DL1/H
- Type: High-temperature version
- Detection distance: 2 mm
- Housing: Cylindrical, M8
- Detection principle: Inductive
- Output: DC 2-wire, Normally Open (NO)
Technical specifications
- Cable length: 2 m
- Detection direction: Frontal
- Response frequency: 500 Hz
- Response time: 1 ms
- Detectable target: Metal
- Special feature: High-temperature resistant
- Accessories supplied: 2 nuts, 1 tooth lock washer, certificate
- Hysteresis: Less than 10% of sensing distance
- Reference target: Iron 8×8×1 mm
- Temperature drift: Within ±15% of sensing distance across 0–+120 °C (reference +23 °C)
- Materials: Body brass nickel-plated; sensing face PTFE; cable PVC
Mechanical / Electrical parameters
- Output type: DC 2-wire NO
- Supply voltage: DC 12–24 V
- Power arrangement: 2-wire DC
- Protection rating: IP67
- Connection: Molded cable
- Signal type: Discrete switch
- Operating mode: Normally open
- Mounting: Non-flush
- Indicator: Yellow output LED
- Residual voltage: Below 3 V (below 5 V non-polar, at 100 mA load, 2 m cable)
- Voltage influence: Within ±1% change in sensing distance for ±15% supply variation
- Load current: Up to 100 mA (with 2 m cable)
- Insulation resistance: ≥50 MΩ (DC 500 V megger) between live parts and housing
- Switching capacity: Under 100 mA
- Leakage current: ≤0.8 mA
- Shock resistance: 500 m/s², X/Y/Z directions, 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz double amplitude 1.5 mm, X/Y/Z directions 2 h
- Weight: 50 g
Operating environment
- Operating temperature: 0–120 °C
Accessories
- Nut ×2
- Tooth lock washer ×1
- Certificate
Features / Specification summary
- Model: CL08-RN2DL1/H (CL08 series)
- Detection type: Inductive proximity
- Sensing distance: 2 mm (reference target: Iron 8×8×1 mm)
- Housing material: Brass nickel-plated; sensing face PTFE; cable PVC
- Operating temperature: 0–120 °C (high-temperature type)
- Protection: IP67
- Power: DC 12–24 V, 2-wire DC
- Output: DC 2-wire, NO, discrete switch, load current ≤100 mA
- Response frequency / time: 500 Hz / 1 ms
- Mounting: Non-flush, molded cable, yellow output indicator
