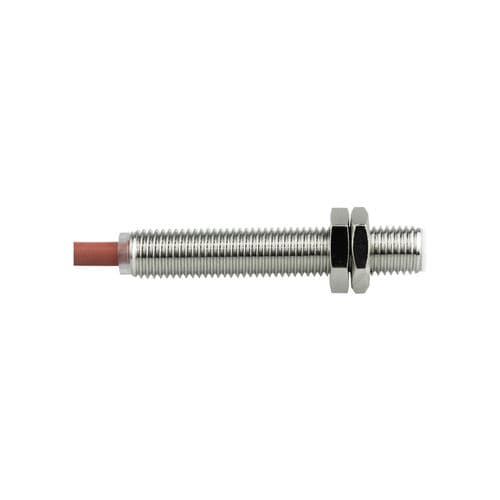

Inductive proximity sensor CL12-RF2DL1-HcylindricalM12with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- with switching function, 2-wire
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- brass, PVC, PTFE
- Protection level
- high-temperature, heat-resistant, IP67
- Other characteristics
- non-contact, high-temperature
- Measuring range
Min.: 0 mm
(0 in)Max.: 2 mm
(0.08 in)- Process temperature
Min.: 0 °C
(32 °F)Max.: 120 °C
(248 °F)
Description
Product name
Product overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Product illustrations
Features / technical highlights
- Model: CL12-RF2DL1/H
- Series: CL12 series proximity sensors
Product overview
- Type: High-temperature version
- Sensing distance: 2 mm
- Housing: Cylindrical (M12)
- Principle: Inductive
- Form factor: M12 thread
- Output: DC 2‑wire, Normally Open (DC 2‑wire NO)
Technical specifications
- Cable length: 2 m
- Sensing direction: Front
- Operating frequency: 800 Hz
- Response time: 625 μs
- Detectable target: Metal objects
- Special feature: High-temperature resistant
- Accessories: 2 nuts, 1 internal tooth washer, inspection certificate
- Hysteresis: Less than 10% of sensing distance
- Standard target: Iron 12×12×1 mm
- Temperature drift: Within ±15% of sensing distance in 0 to +120 °C range (reference at +23 °C)
- Materials: Housing: nickel-plated brass; sensing face: PTFE (Teflon); cable: PVC
Mechanical / Electrical parameters
- Output type: DC 2‑wire NO (two‑wire DC)
- Supply voltage: DC 12–24 V
- Power supply mode: Two‑wire DC
- Protection class: IP67
- Connection: Molded cable
- Signal type: Switching
- Operation mode: Normally open
- Mounting: Flush (embedded)
- Indicator: Yellow output indicator
- Residual voltage: ≤3 V (≤5 V without polarity) at 100 mA load, 2 m cable
- Voltage influence: Within ±1% sensing distance variation for ±15% supply voltage change
- Load current: 100 mA (with 2 m cable)
- Insulation resistance: ≥50 MΩ (measured with DC 500 V megohmmeter) between live parts and housing
- Switching capacity: ≤100 mA
- Leakage current: ≤0.8 mA
- Shock resistance: 500 m/s², X/Y/Z, 3 times each
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z, 2 h
- Weight: 65 g
Operating environment
- Operating temperature: 0–120 °C
Product illustrations
- Product page includes wiring diagram and dimensional drawing for installation and connection reference.
Features / technical highlights
- High-temperature inductive proximity sensor with M12 cylindrical housing
- 2 mm sensing distance, standard target iron 12×12×1 mm
- Operating voltage DC 12–24 V, 2‑wire DC, normally open output
- Operating frequency 800 Hz, response time approx. 625 μs
- Protection rating IP67, operating temperature range 0–120 °C
- Housing nickel-plated brass, sensing face PTFE, PVC cable; supplied with nuts and washer
