RTD thermometer C.A 1823
Pt100Pt1000digital

RTD thermometer
RTD thermometer
RTD thermometer
RTD thermometer
Add to favorites
Compare this product


Characteristics

Technology
Pt100, RTD, Pt1000
Display
digital
Communication
USB
Configuration
portable
Other characteristics
data logging
Temperature

Min.: -100 °C
(-148 °F)

Max.: 400 °C
(752 °F)

Description

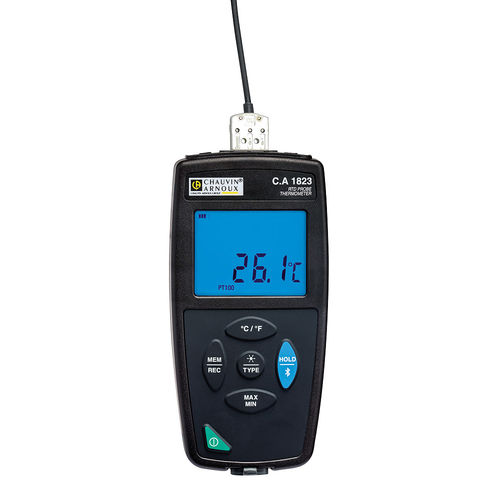

Compact and magnetized for fixed or portable use, the C.A 1823 resistance thermometer is an accurate, versatile, long-lasting thermometer. Equipped with a wide backlit display, it offers all the useful functions for work in the field, such as Min, Max, Hold, as well as spot or programmable recording possibilities. Communicating via USB or Bluetooth, it is possible to program alarms and recording triggers on thresholds by means of the Data Logger Transfer software. Additional specifications: - 1 input for Pt100 or Pt1000 sensors - Measurement range: - 100 to + 400°C - Intrinsic uncertainty: ± (0.4% R + 0.3°C) - Resolution: 0.1 °C or 1 °C - Min, Max, Hold functions, Alarms / °C or °F / Backlighting - Recording up to 1 million points - USB or Bluetooth interfaces - IP54 casing - 3-pole flat-pin connector - Dimensions: 150 x 72 x 32 mm - Weight: 260 g with batteries - Compatible with the Multifix accessory - Shockproof protective sheath available as an accessory
