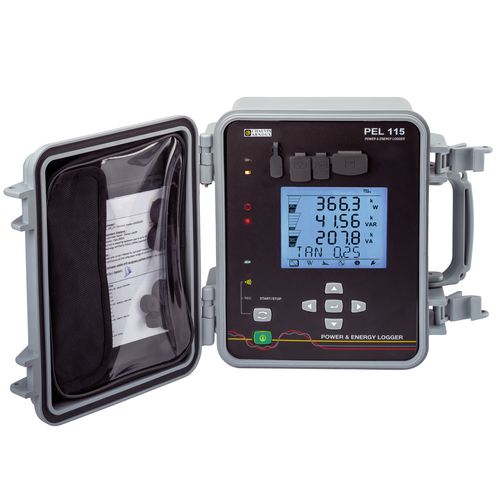

Voltage data-logger PEL 115

currentpowerenergy

The PEL 115 measures and records all the power and energy values. Delivered in an IP67 site-proof case, the PEL 115 is ideal for use in the field or outdoors in multiple sectors: • electricity generator: renewable energies, thermal energy, etc. • industries: metallurgy, glassmaking, agri-food • residential buildings, tertiary, etc. • infrastructure and transport Applications • Energy audits • Electrical diagnostics • Industrial maintenance • Simple, effective ergonomics In its site-proof case with the mounting kit, it can be installed very easily at the top of an electricity pole. The large backlit display is easy to read in all circumstances. It is equipped with 1 voltage inputs and 4 current inputs. RMS and DC measurements • AC and/or DC voltages up to 1,000 V • currents up to 10 kA AC or 5 kA DC (depending on the current sensor). • active, reactive and apparent power values • active, reactive and apparent energy values • fundamental and balanced active power values and unbalanced active power values • measurements and characterization on motors (via Android application) • breakdown of energy losses • phase information: cos φ, tan Φ, power factor (PF) • crest factor • THD calculation for currents and voltages • DC, 50 Hz, 60 Hz and 400 Hz (Naval, etc.) measurements PEL Transfer software With the PEL Transfer software you can: • set up your PEL • check the connections before recording begins • download the measurements recorded in the PEL • view the results of the various measurements and analyses
