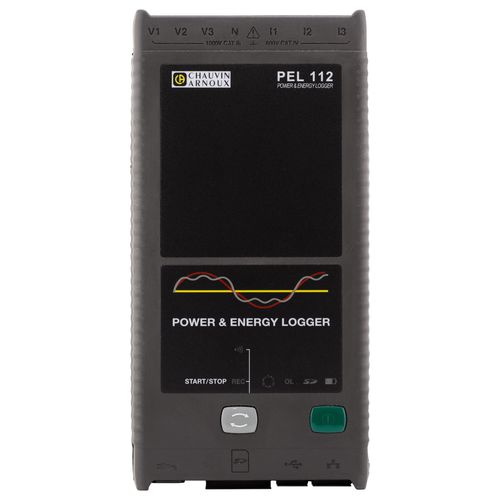

Power data-logger PEL 112

voltagecurrentenergy

The PEL 112 measures and records all the power and energy values. It can be used wherever there is electricity: • electricity generator: renewable energies, thermal energy, etc. • industries: metallurgy, glassmaking, agri-food • residential buildings, tertiary, etc. • infrastructure and transport • datacenters, etc. Applications • Energy audits • Electrical diagnostics • Industrial maintenance Simple, effective ergonomics • compact and magnetized • 3 voltage inputs and 3 current inputs • ideal for use in cold rooms (-20 °C) • self-powered via the phase (option) RMS and DC measurements • AC and/or DC voltages up to 1,000 V • currents up to 10 kA AC or 5 kA DC (depending on the current sensor). • active, reactive and apparent power values • active, reactive and apparent energy values • fundamental and balanced active power values and unbalanced active power values • measurements and characterization on motors (via Android application) Functions • breakdown of energy losses • phase information: cos φ, tan Φ, power factor (PF) • crest factor • THD calculation for currents and voltages • DC, 50 Hz, 60 Hz and 400 Hz (Naval, etc.) measurements PEL Transfer software With the PEL Transfer software you can: • set up your PEL • check the connections before recording begins • download the measurements recorded in the PEL • view the results of the various measurements and analyses
