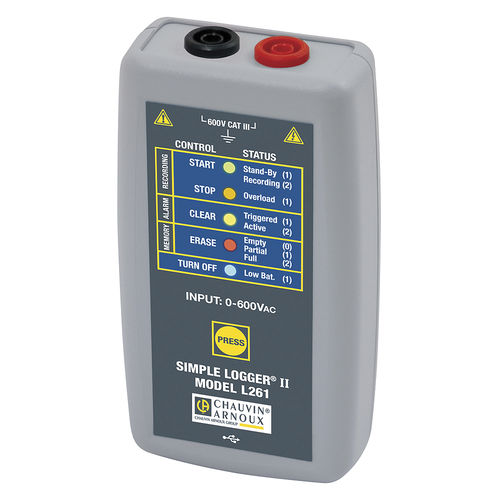

Voltage data-logger L261
USBwithout displaybattery-powered

voltage data-logger
voltage data-logger
voltage data-logger
Add to favorites
Compare this product


Characteristics

Measured quantity
voltage
Connector type
USB
Display
without display
Other characteristics
battery-powered
Memory capacity

240,000 unit

Description

Equipped with a built-in storage capacity of 512 kB, the Simple Logger II models can save up to 240,000 measurements. Depending on the application in progress, users can optimize memory management very simply by selecting the storage mode and the sampling rate. The XRM extended recording mode is included on all the models. These complete instruments offer tools for programming alarm setpoints, delayed triggering, triggering according to a threshold or triggering according to a specified range.The LEDs on the front panel show the logger's status and memory occupation at a glance. The L261 logger is ideal for industrial, commercial or residential supervision, monitoring of voltage harmonics, long-term power supply monitoring, etc. Specifications: •1 input channel •Input connection: 2 recessed banana sockets •Range: 0 to 600 VAC/DC •Resolution: 0.1 V •Sampling rate: 64 samples per period •Storage interval: programmable from 125 ms to 1 day •Recording modes: Start/End, FIFO, XRM extended recording mode •Recording duration: 15 min to 8 weeks, programmable with DataView •Memory: 240,000 measurements (512 kB) •Communication: optical USB 2.0 •Power supply: 2 x AA 1.5 V batteries •Battery life: 100 hours to more than 45 days •Electrical safety: IEC 61010 300V CAT IV and 600V CAT III
