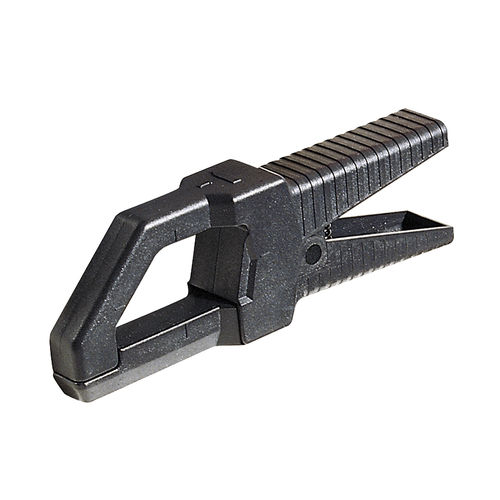

AC clamp ammeter Y4N

for busbar mountingmeasurement

The Y Series is a range of transformer clamps whose jaw shape and clamping diameter allow the measurement of alternating currents up to 600 A on cables 30mm in diameter or busbars up to 62x5 mm in installations up to CAT III 600 V or CAT IV 300 V. The Y4N clamp outputs a DC voltage which is particularly useful for multimeters with insufficient V AC or A AC sensitivity. Main features of the Y4N model: - Rated current: 600 A AC - Output signal: DC voltage - Output / input ratio: 100 mV DC / A AC - Output via lead and isolated Ø 4 mm male plugs
