AC/DC clamp ammeter E25

measurement

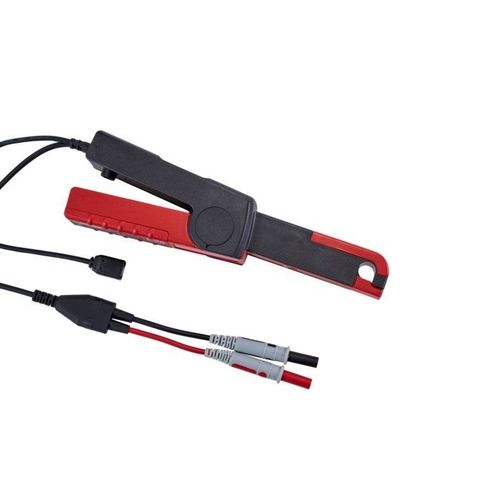

The E25 is a current clamp using Hall-effect technology to measure direct and alternating currents. It offers 2 sensitivities for measuring currents from a few mA up to 80 A with a 20 kHz bandwidth. The E25 clamp is powered by battery or by a standard 5 V DC mains adapter via its µUSB interface and offers automatic DC Zero adjustment and an automatic power-off function. Its lead equipped with 2 insulated male banana plugs can be used to hook it up to any multimeter or other measuring instrument. It can be used to work on 600V CAT III and 300V CAT IV installations. Measurement range : 5 mA .. 80 A DC / 60 A AC Bandwidth : 20 kHz (-3 dB) Clamping diameter 11.8 mm
