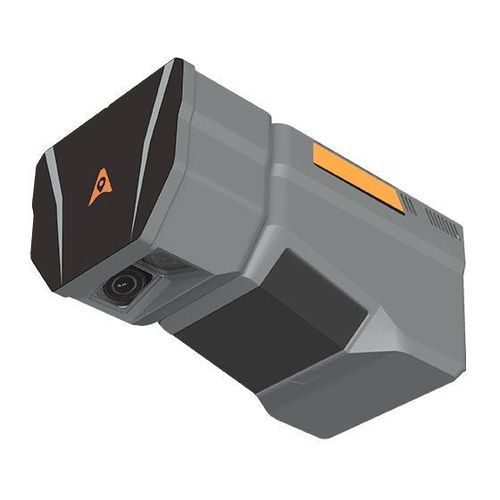

High-resolution LIDAR sensor AlphaAir 6 Dual

lightweightsmallindustrial

Overview
The CHCNAV AlphaAir 6 Dual (AA6D) airborne LiDAR system is engineered for high‑resolution aerial surveying over complex and high‑relief terrain. It integrates prism‑based long‑range laser scanning, a high‑grade IMU and dual APS‑C CMOS cameras to provide extended ranging (up to 2,100 m), dense point clouds and ultra‑wide imagery. Open interfaces support multirotor and fixed‑wing UAV integration.

Main features

• Long‑range laser scanning: up to 2,100 m (80 %) and 960 m (10 %); scanner FOV 90°; up to 16 returns.
• High point throughput: scanner capacity up to 2,000,000 pts/s; typical operational densities up to 1,000,000 pts/s at 120 m AGL (~220 pts/m²).
• Dual APS‑C imaging: 26 MP × 2 (6252 × 4168), 110° FOV, 16 mm focal length.
• Lightweight design: 1.85 kg with field‑swappable storage and high data transfer capability.

Benefits and performances

• Extended range + high‑grade IMU: reliable measurements to 2,100 m and IMU bias stability ≈0.3°/h for accurate positioning in difficult terrain.
• Improved point cloud quality: 5th‑generation real‑time waveform processing (RWP) and multi‑period algorithms for better return separation and data completeness.
• Wide‑area imaging: dual APS‑C sensors (110° FOV) increase coverage and operational efficiency versus single‑camera systems.
• Operational readiness: compact 1.85 kg package, IP64 protection, operating −20 °C to +50 °C, internal 512 GB storage and fast offload.

Use cases

• Land and topographic surveying
• Forestry and canopy analysis
• Road and highway mapping
• Power line corridor inspection
• Emergency response and rapid mapping

Detailed description
The AA6D combines prism‑based long‑range laser technology, a 500 Hz high‑grade IMU and 5th‑generation RWP to deliver high‑density, high‑completeness point clouds at flight altitudes between 100 and 600 m AGL. Dual APS‑C cameras provide wide‑FOV, high‑resolution imagery synchronized with LiDAR data. Open interface protocols simplify integration across multirotor and fixed‑wing UAVs while the lightweight form factor and user‑swappable storage enable extended missions and rapid turnaround.

Technical specifications

• Laser scanner: Range 2,100 m @80 %, 960 m @10 %; scan capacity up to 2,000,000 pts/s; FOV 90°; up to 16 returns.
• Point cloud performance: 1,000,000 pts/s at 120 m AGL (~220 pts/m²); 200,000 pts/s at 400 m AGL (~13 pts/m²); RWP 5th‑generation real‑time processing.
• Imaging: 26 MP × 2 (6252 × 4168); FOV 110°; focal length 16 mm; CMOS size APS‑C.
• Positioning: GNSS multi‑constellation; IMU 500 Hz; IMU bias stability ≈0.3°/h; system‑level precision <5 cm H / <5 cm V (depends on survey configuration).
• Environmental: Operating −20 °C to +50 °C; protection IP64.
• Physical: Weight 1.85 kg; dimensions 223.5 mm × 120 mm × 129 mm.
• Storage & data: Internal 512 GB; data transfer up to 200 MB/s; user‑swappable storage cards.
