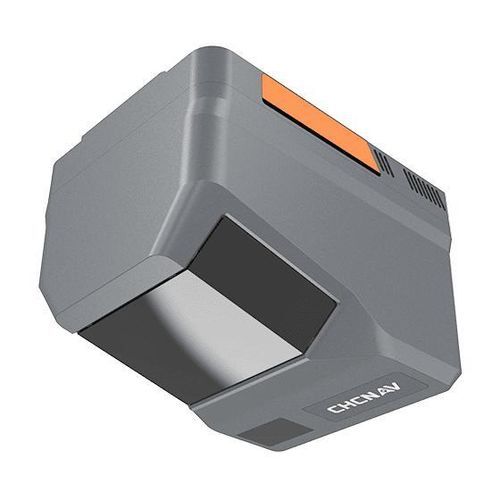

3D LIDAR sensor AlphaAir 6

lightweightfor surveyingfor mapping

Overview
The CHCNAV AlphaAir 6 (AA6) is an airborne LiDAR system combining long-range prism scanning, a high-grade IMU and switchable 100/25 MP imaging modes for efficient aerial surveying and mapping on UAV and manned platforms. Designed for complex, high-relief terrain, it supports typical operating altitudes of 100–600 m AGL and a maximum ranging capability up to 2,100 m.

Main features

• Long-range prism scanner with up to 2,100 m ranging capability (80%); typical AGL 100–600 m.
• High-grade IMU: bias stability ~0.3°/h, 500 Hz sampling for accurate inertial navigation.
• Point-cloud throughput: up to 1,000,000 pts/s at 120 m AGL (≈220 pts/m²) and 200,000 pts/s at 400 m AGL (≈13 pts/m²).
• Switchable imaging: 100 MP (12288 × 8192) or 25 MP (6144 × 4096) on a 4/3" CMOS, FOV 74°, focal length 12 mm.
• Ultra-light integrated design: weight 1.35 kg, enabling extended endurance and efficient coverage on UAV platforms (example: up to 50 min and ~15 km² per mission on CHCNAV X500).
• Open interfaces and integration support for multirotor UAVs, fixed-wing UAVs and manned aircraft.

Benefits and performances

• Reliable mapping in complex, high-relief terrain through combination of long-range laser and high-grade IMU.
• Real-time 5th-generation waveform (RWP) processing with multi-period capabilities to enhance point-cloud completeness and resolve multiple returns under high PRR.
• Flexible imaging modes to optimize GSD and signal sensitivity according to flight altitude and mission needs.
• Lightweight integrated package that extends flight endurance and increases area coverage per sortie on typical UAV platforms.
• 512 GB internal storage and high data throughput support large-volume acquisitions.

Use cases

• Topographic and aerial surveying in complex terrain
• Forest inventory and biomass assessments
• Road, highway and bridge mapping
• Power line corridor inspection
• Emergency response and rapid mapping

Technical specifications

• Laser scanner: Range: 2,100 m @80%, 960 m @10%; Scanning rate: up to 2,000,000 pulses/s; FOV: 90°; Returns: up to 16.
• Imaging: Resolution: 25 MP (6144 × 4096) or 100 MP (12288 × 8192); FOV: 74°; Focal length: 12 mm; CMOS size: 4/3".
• Positioning: GNSS: full-constellation support; IMU: 500 Hz; Target precision: < 5 cm H / < 5 cm V (typical configuration).
• Environmental: Operating temperature: -20 °C to +50 °C; Protection rating: IP64.
• Physical: Weight: 1.35 kg; Size: 155 mm × 120 mm × 129 mm.
• Performance: Internal memory: 512 GB; supported transfer speeds up to 200 MB/s.
