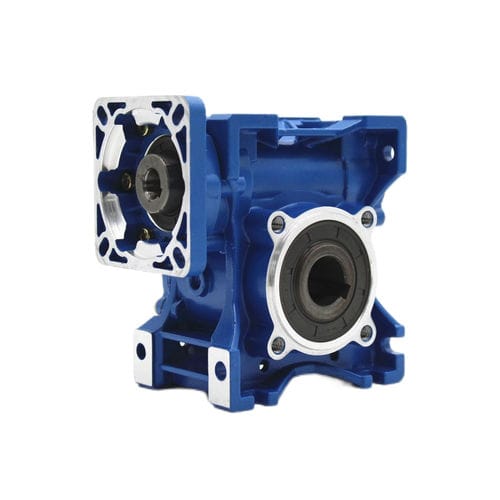

Worm gearbox CYRW040
right anglesolid-shaftdual-shaft

worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
Add to favorites
Compare this product

Go to the Chenyue (Jiangsu) Technology Co., Ltd. website for more information

Characteristics

Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft, dual-shaft, multiple-output
Torque
20 - 50 Nm, 10 - 20 Nm, 5 - 10 Nm
Number of stages
single-stage, dual-stage
Performance
precision, high-performance, low-noise, high-efficiency, low-backlash, maintenance-free
Applications
for heavy-duty applications, transmission, for servo motors, for hoist units, for robots, for conveyors, centrifuge, for mining applications, for industrial applications, for lifting applications, for textiles, for material handling equipment, for machines, for marine applications, winch, fan, for elevators, for milling applications, for machinery, for doors
Other characteristics
high-quality, for pumps, for motor coupling, for grinding machines, for mixers, for the crane and lifting industry, cutting, for mixing trucks, motor
Power

0.09 kW, 0.12 kW, 0.18 kW, 0.25 kW, 0.37 kW
(0.12 hp, 0.16 hp, 0.24 hp, 0.34 hp, 0.5 hp)

Gear ratio

Max.: 100 unit

Min.: 5 unit

Description

CYRW worm gearboxes adopt "square box" aluminum casing based on mechanical principles, which are an upgrade of the RV series. More suitable for servo motors, with servo motor input they can reach 3000 rpm. Key features • Input shaft/hole: ∅9/11/14 • Output shaft/hole: ∅18 h6 • Die-cast aluminum alloy housing • Worm wheel adopts high quality tin bronze • Certification: ISO9001/45001/14001 ROHS CE IAF CNAS • Bipolar reducers: available • Flange: round or square • Mounting orientation: B3 B6 B7 B8 V5 V6 • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 3 KGS Key benefits • Good heat dissipation • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Can be installed in any position and in all directions • Higher precision and can be used in more applications • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free
