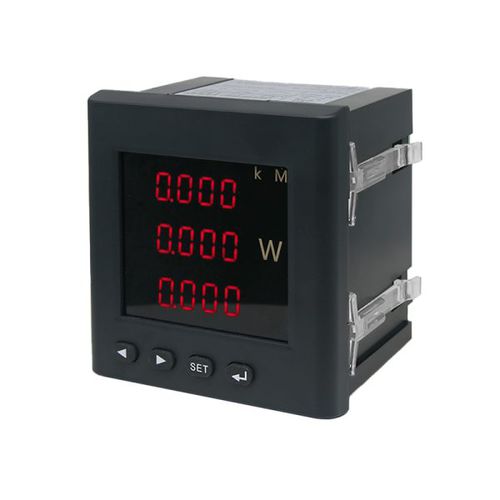

Power panel meter BPM3-96PQ

ACLED4-digit

BPM3-96PQ Active & Reactive Power Meter is a Combination Type of digital power meter. BPM3-96PQ digital panel meter can display active power & reactive power on one screen, which is a precise device for measuring power data of the energy consumption system in real-time and can replace an analogical panel meter. Users can get clear information about which part needs to improve effective management and control of energy. The keyboard of the BPM3-96PQ Active & Reactive Power Meter can switch measurement range and protection of the parameters of programming by a password. This BPM3-96PQ digital panel meter is ideal for reducing installation manpower and optimizing the use of spaces in the panel. • Three phase or single phase electric network monitor • Display 1/3 lines 4 digits and 1 decimal 0~9999 with one LED indicate unit Kilo/Million • Combination show active power & reactive power & power factor • 96*96mm panel mounting size • Accept customer design • Power Supply : AC / DC 80-265V, 45-65Hz Burned < 4VA • Current Measurement : …/ 1A or …/5 A Burned < 0.1W • Voltage Measurement : Direct measurement 18~277V ac (L-N) • PT secondary …/100Vac Burned < 0.1W • Frequency Measurement : 45~65Hz Resolution 0.01Hz • Accuracy : P/ Q – 0.5% PF – 0.001 • Communication Port : RS485 (2/3 wires half duplex) Modbus RTU mode • Analog Outputs (Optional) : 1 channel Isolated 0 / 4 … 20 mA • Alarms Outputs (Optional) : 2 channel DO & 4 channel DI 230 VAC 5 A
