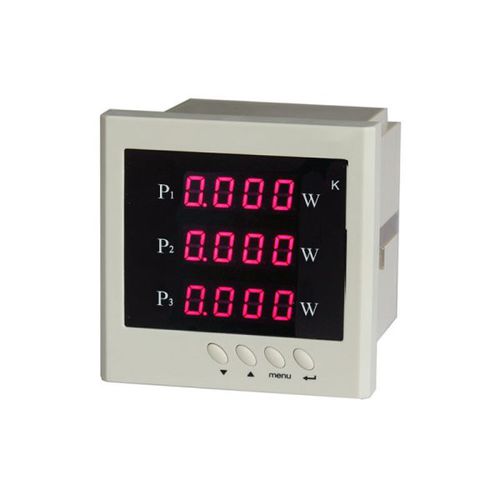

Power panel meter BPM2-96P/Q

ACdigitalpanel-mount

BPM2-96P/Q Active/Reactive Power Meter is an economic digital power meter that is a precise device for measuring the active power of the energy consumption system in real-time. It can replace an analogical panel meter users can get clear information about which part needs to improve effective management and control of energy. This digital panel meter is with a keyboard that can switch measurement range and protection of the parameters of programming by a password. BPM2-96P/Q Active/Reactive Power Meter is ideal for reducing installation manpower and optimizing the used one space in the panel. • Three-phase 3P4W or 3P3W electric network monitor • Display 1/3 lines 4 digits and 1 decimal 0~9999 with one LED indicating unit Kilo/Million • Independent show each phase of active power or reactive power • 96*96mm panel mounting size, optional 80*80mm, 72*72mm • Accept customer design • Power Supply : AC / DC 80-265V, 45-65Hz Burned < 4VA • Current Measurement : AC: …/ 1A or …/5 A Burned < 0.1W • Voltage Measurement : Direct measurement 18~277V ac (L-N) PT secondary …/100Vac Burned < 0.1W • Frequency Measurement : 45~65Hz Resolution 0.01Hz • Accuracy : U / I – 0.5% P / Q – 0.5% • Communication Port (Optional) : RS485 (2/3 wires half duplex) Modbus RTU mode
