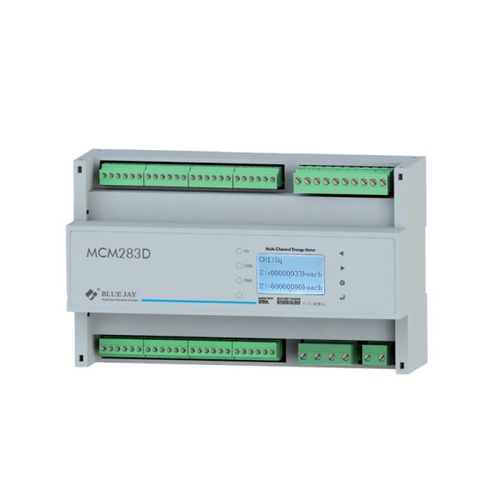

Three-phase electric energy meter MCM283D

DIN railflexibleRS-485

The MCM283D multi-channel energy meter is a high-performance measurement solution designed for residential billing and industrial applications. It supports 8 channels three-phase energy measurement channels or 24 channels single-phase energy measurement channels, providing users with flexible power monitoring capabilities. The device complies with the CATIII-300V safety voltage level and has a 4kV withstand voltage capability, ensuring its long-term stable operation in various power environments. The MCM283D is equipped with an RS485 communication interface and provides an optional Ethernet port for efficient data transmission and remote monitoring. In order to adapt to various network environments, the MCM283D also supports wireless module options such as Wi-Fi, 4G and Bluetooth. In addition, the flexible combination of PO and DO ports further enhances the functionality of the product, making it outstanding in power management and data acquisition. 8 or 24 loops Metering for Utility Submetering The MCM283D electric utility meter is design for multi circuit current input measurement: 8 loops and 24 loops for branch circuits. Each circuit is equipped with the function of THD measurement and able to proceed TOU for electricity cost sharing of rental utility.
