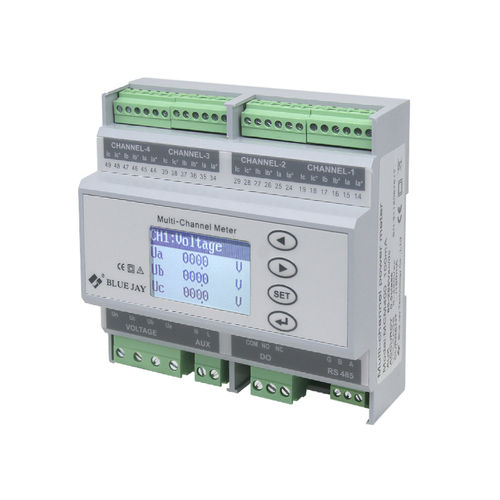

Energy meter power meter MCM2400 series

active powerreactive powerapparent power

MCM2400 Multi Circuit Energy Meter is designed for commercial and residential power circuit sub-metering projects. This Multi-Circuit Energy Meter includes a 4-channel three-phase energy meter that is MCM2403 and a 12-channel single-phase energy meter that is MCM2401. Both of them have basic parameters, voltage harmonic distortion, current harmonic distortion measuring function, and Digital outputs. The MCM2400 uses a 35mm standard din-rail installation and 6M width size, with a dot matrix LCD interface so it can easily display all parameters on screen. Optional voltage imbalance Optional current imbalance Optional max demand Optional voltage deviation Optional ethernet port Optional Profibus The MCM2400 multi circuit energy meter performs real-time metering, measures energy consumption, and multi-tariff time-of-use (TOU), and monitors the power quality of multi-channel feeder loops, with an RS485 port that can send out collected value to the remote host. The dimensions of MCM2400 are Long × Height × Depth =105X104X61.75mm It is ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers, and other multi-user environments Feature of MCM2400 Multi Circuit Energy Meter • 4 channels three-phase or 12 channels single phase circuit metering • Measurement accuracy class 1.0 • Current measuring 100mA or 333mV • Dot matrix LCD screen • Universal series power supply (85-265VAC/DC) • Provide 5 virtual alarm trigger • With RS-485 Modbus/RTU Communications • With 2 ~ 21th harmonic analysis • With SPDT relay output for alar
