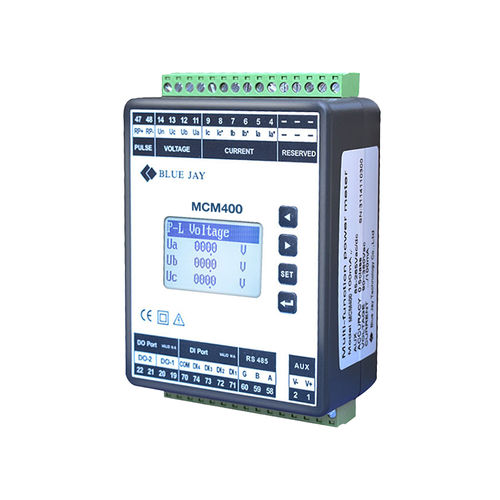

Single-phase electrical energy meter MCM400

three-phaseDIN railRS-485

MCM400 Multi Circuit Energy Monitor is designed for commercial and residential power circuit sub-metering projects such as Multi-Tenant Submetering. This multi-circuit sub-meter can integrate a 4pcs three-phase energy meter, or 12pcs single-phase energy meter. Metering operation processing by different MCUs provides high-accuracy billing performance. This multi channel energy monitor performs real-time metering, measures energy consumption, multi-tariff, and time-of-use (TOU), and monitors power quality. This three-phase energy meter has 4 four-channel circuits. It has an LCD screen and keypad for easy configuration. RS485 communication can send out collected value to the remote host. This MCM400 Multi-Channel Energy Monitor is ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers, and other multi-user environments. Features • Measuring basic electrical parameters, and voltage and current harmonic distortion • Optional measuring current and voltage imbalance, max demand, and voltage deviation • Class 0.2 or class 0.5 basic parameter class 1 for active energy • Optional 12 channels measurement signal access • Optional Profibus communication • Optional TOU record for each monitor channel • 4 channels three phase metering • Current measuring100mA or 333mV • Standard 35mm 4 module DIN rail mounting • LCD screen Display • OEM & ODM Service available
