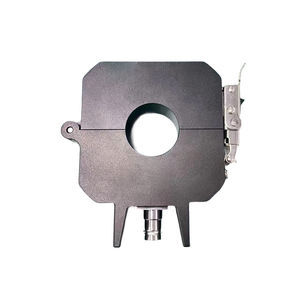

Partial discharge monitor SCM-PDS3W

The SCM-PDS3W PD sensor integrates ultrasonic, TEV (Transient Earth Voltage), and UHF (Ultra High Frequency) technologies to detect partial discharges in middle-high voltage equipment. SCM-PDS3W can monitoring of transformers, high-voltage switchgear, and cable joints. SCM-PDS3W is highly portable, offers fast measurement speeds, and boasts strong anti-interference capabilities, making it suitable for various field applications. • Rugged, compact design; • Non-intrusive detection method; • Strong magnets to attach sensor; • Rapid detection of partial discharge conditions; • Easy to Install, integrated transient (Over-voltage) protection; • Suitable for extreme environment, outdoor substation; • Measures PD in high-frequency UHF range; • Ensures sensitive PD measurements in noisy environments; • Designed specifically for PD detection at HV cable terminations; • RS485, Modbus-RTU, SCADA systems. • Factory and on-site testing; • Power transformers; • Medium and high voltage connections; • Power coils, motors; • Industrial motor equipment; • High voltage components: sleeves, insulators, containers, coil terminations, bus wires.
