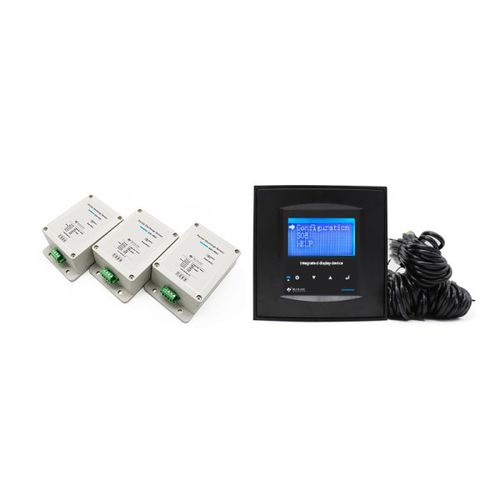

Partial discharge monitor SCM-PD3000

PD3000 Partial Discharge Monitor is an advanced solution for various and continuous partial discharge monitoring in medium-voltage and high-voltage electrical assets such as transformers, power cables (AC& DC cables, MV cables, EHV cables, isolated phase bus), rotating machines (generators, electrical motors), switchgear, etc. No matter whether PD monitoring for switchgear, PD monitoring for transformer, generator partial discharge monitoring, PD monitoring for cables, we provide three online partial discharge monitoring solutions that detect PD activity and assess insulation condition. Contact us directly to get your special PD monitoring solution. The default solution employs ultrasonic (AE), and transient ground wave (TEV) for PD monitoring. The basic feature of Blue Jay PD3000 online partial discharge monitoring is a long-life partial discharge sensor compatible with an external power supply and battery power, a panel-mounted HMI unit with automatic PD data acquisition and analysis, supporting up to 96pcs sensor, an RS 485 MODBUS-RTU for easily integrated SCADA systems, and easy installation. The key features of PD3000 are in the following: PD Discharge Data Acquisition & Analysis The PD 3000 online partial discharge monitoring system can acquire synchronous multi-channel partial discharge data and other data such as temperature and humidity for comprehensive analysis. With waveform data recording, and advanced automatic PD data acquisition and analysis, it can pre-detect faults of MV and HV electrical assets more quickly.
