Vertical disc grinding center VSC260

external cylindricalfor gearsvertical

Overview

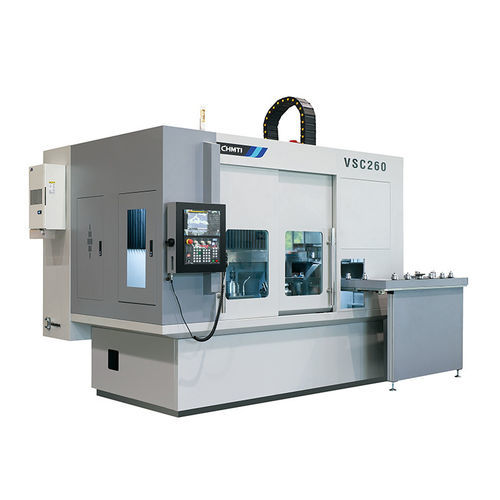

Turn-grind center VSC260 designed for post-heat-treatment machining of disk-type gear parts. Integrates turning and grinding operations in a single machine to reduce re-clamping and improve machining accuracy and productivity.

Main performance and features

• Integrated turning and grinding in one setup, minimizing secondary clamping and improving dimensional accuracy and throughput.
• Inverted vertical layout with compact structure and efficient chip evacuation; fully enclosed guarding to contain chips and coolant.
• Turning and grinding spindles use electric spindles with recirculating water cooling to control thermal growth and stabilize machining accuracy.
• Linear feed axes use glass scale (linear encoder) full closed-loop feedback to enhance positioning and transmission accuracy.
• Equipped with a circulating parts magazine allowing the work spindle to pick parts directly from the magazine for high automation and cycle efficiency.

Main technical specifications

• Model: VSC260
• Applicable parts: disk-type gear components for post-heat-treatment turning and grinding
• Maximum swing (turning): Φ260
• Maximum workpiece diameter: Φ200
• Maximum workpiece length: 80 mm
• Workpiece spindle power: 15 kW
• Inner cylindrical grinding spindle power: 15 kW
• Outer cylindrical grinding spindle power: 18 kW
• X-axis travel: 1600 mm
• Y-axis travel: 300 mm
• Layout: inverted vertical
• Spindle type: electric spindles (turning and grinding)
• Cooling: recirculating water cooling
• Feedback and transmission accuracy: linear axes with glass-scale full closed-loop feedback
• Automation: circulating parts magazine enabling direct pick-up by the work spindle
