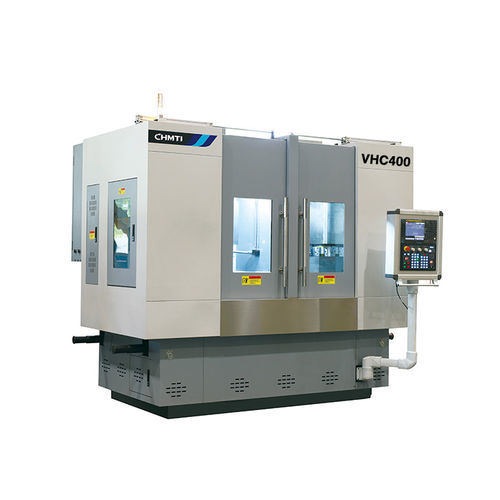

CNC lathe VHC400

vertical2-spindle8 tools

Product overview
Suitable for machining large, thin, heavy and irregular parts used in mining machinery, construction equipment, heavy trucks, motors and pumps.

Main performance and features:

• High rigidity, suitable for machining quenched parts.
• High precision with low discrete variation.
• High spindle speed for improved surface finish.
• Rigid bearing structure enabling heavy cutting while effectively controlling thermal deformation and vibration.
• One-piece bed and column geometric design for powerful heavy cutting and precision machining.
• Symmetrical dual-spindle and dual-turret layout increases production efficiency, shortens cycle time and reduces footprint.
• Designed for automation; generous bed space accommodates automatic loading/unloading devices.

Main technical specifications

• Model: VHC400
• Maximum swing diameter: Φ650 mm
• Maximum machining height: 450 mm
• Maximum workpiece diameter for turning: Φ400 mm
• Spindle speed range: 100–2500 r.p.m
• Main servo motor power: 15 kW
• Hydraulic chuck diameter: Φ300 mm
• Rapid traverse speed (X/Z): X: 16 / Z: 16 m/min
• Maximum travel (X/Z): X: 250 mm / Z: 450 mm
• Number of turrets: 2
• Tool capacity per turret: 8 x 2

Product information
Product code: VHC400
Category: Lathes & Machining Centers
