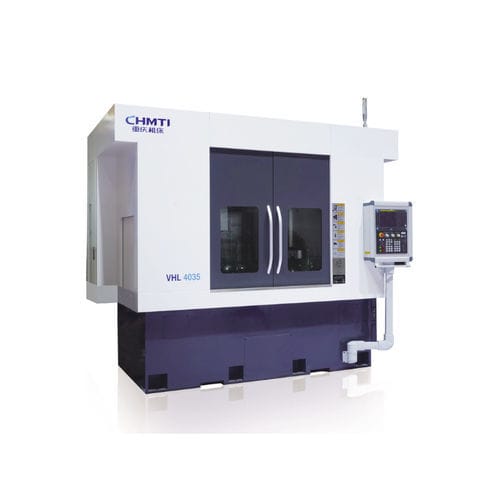

CNC lathe VHL4035

vertical5-axismulti-spindle

Summary
Suitable for high-volume, high‑precision composite machining of automotive and new‑energy vehicle brake discs. Also cost‑effective for disc-type and short‑shaft machining in motorcycle, instrumentation, power tools, general machinery and reducer industries.

Main performance and features

• The machine is a five‑axis, four‑motion linked vertical/inverted CNC turning center designed for efficient, precise machining.
• Vertical spindle and inverted spindle are arranged vertically opposed; dual radial feed provides horizontal movement, dual axial feed provides vertical movement, and a servo W‑axis enables dual‑side machining for composite processing.
• Compact structure and small footprint with fully enclosed inner and outer protective covers, high‑pressure dry/wet cooling system and automatic chip removal for efficient parts production.
• Both workpiece spindles of the VHL4035 use high‑precision rolling bearing support to meet high‑speed cutting requirements.
• Optional single‑machine automation and multiple connection interfaces to support automated and flexible production lines.
• Control system options: FANUC 0i‑TF or Siemens 828D.

Main technical specifications (table)
No. | Specification | Value
1 | Maximum workpiece diameter | Φ420
2 | Maximum workpiece height | 450
3 | Maximum rotating diameter | Φ600
4 | Vertical/Inverted spindle speed range (r/min) | 2500
5 | Vertical spindle power (kW) | 15
6 | Rapid traverse speed (m/min) | 24
7 | Maximum distance between two spindles (without chuck) | 650

Characteristics / technical specifications

• Model: VHL4035
• Applicable industries: automotive brake discs; high‑volume disc and short‑shaft machining (motorcycle, instrumentation, power tools, reducers, etc.)
• Structure: vertical/inverted, five‑axis with four‑motion linkage; vertical spindle and inverted spindle vertically opposed
• Spindle speed range: 2500 r/min
• Vertical spindle power: 15 kW
• Maximum workpiece diameter: Φ420
• Maximum rotating diameter: Φ600
• Maximum workpiece height: 450
• Maximum distance between two spindles (without chuck): 650
• Rapid traverse speed: 24 m/min
• Configuration: fully enclosed protective covers, high‑pressure dry/wet cooling, automatic chip removal; optional single‑machine automation and multiple connection interfaces
• Control system: FANUC 0i‑TF or Siemens 828D
