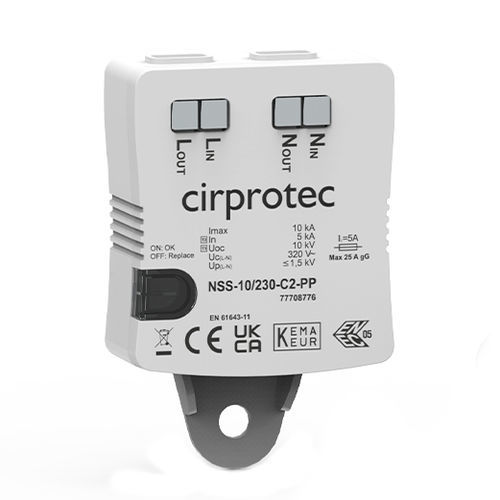

Type 2 surge protector NSS-10/230-C2-PP
type 3class IIclass I

type 2 surge protector
type 2 surge protector
type 2 surge protector
Add to favorites
Compare this product


Characteristics

Type
type 2, type 3, class II, class I
Applications
outdoor, for LED lighting
Other characteristics
compact, combined, in-line
Voltage

230 V, 400 V

Primary current

10,000 A

Open circuit voltage

1.5 kV

Description

NS is the range of devices for discharging transient overvoltages (Type 2+3 / Class II+III), in accordance with IEC 61643-11. In-line format, compact and with different conection options. • The major manufacturers of outdoor LED luminaires install NS into their streetlights (OEM). • Combined discharge voltaje (1,2/50) until 10 kV. • Universal, solutions for class I and class II LED luminaires • Visual end of life indication LED + disconnection • Compact and easy to install in any luminaire. • Cirprotec can upon agreement provide for testing and certification of luminaires in terms of resistance to surges in accordance with the standards, through an ENAC accredited laboratory.

Catalogs

No catalogs are available for this product.

See all of Cirprotec‘s catalogs

Other Cirprotec products

Surge protection devices (SPD) | Electrical power supply networks to IEC/EN (DIN rail) | Type 2+3 / Class II+III
