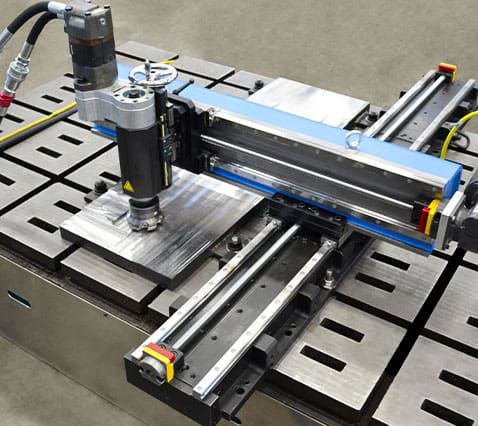

3-axis milling machine LM5200

verticalportablegantry

Like nothing on the market today, the LM5200 for linear or gantry milling can be configured in almost any position! Modular bed sections allow the length to be expanded from 48 to 96 inches (1219.2 to 2438.4 mm) without losing rigidity (with 36 to 84 inches [914.4 to 2133.6 mm] of travel). This portable mill offers maximum flexibility for operators that have diverse milling needs. Solid bed options are available. Max. X-Axis Travel: 84 inches (2133.6 mm) Max. Y-Axis Travel: 34 inches (863.6 mm) Max. Vertical Travel: 4 inches (101.6 mm) Spindle Size: 4 – 6 inches (101.6 – 145.4 mm) Power Option: Hydraulic The CLIMAX LM5200 Milling Machine revolutionizes both the capabilities and functionality of portable mills. Four main features make this one of the best milling machines on the market today: Rigid, Modular Design Unique modular bed design allows shorter bed sections to be combined to fit the length of the work area without losing rigidity. Unique bed length section design provides superior rigidity across the entire bed length. Connection plates and fasteners optimized to provide the ultimate in rigidity, even when bed is extended by 2 or 3 times the original length. Flexible Configuration & Operation The innovative new design of these CLIMAX Milling Machines allow them to be configured for traditional linear milling, or simply split the rails lengthwise to configure for gantry milling! Electric feeds can be mounted on the X, Y or Z axis. Machining capabilities include milling, drilling and even boring.
