3-axis milling machine PM4200

verticalprecisionportable

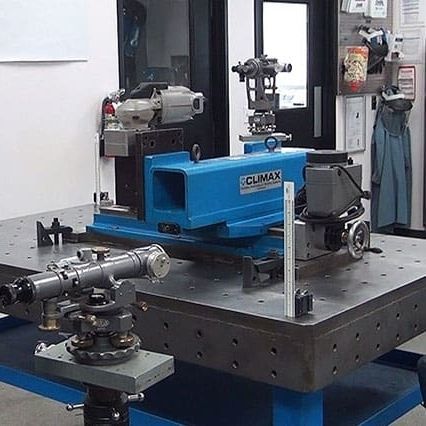

Overview
The CLIMAX PM4200 is a portable 3‑axis milling machine designed for precision machining in field and shop environments. It features a longitudinal power feed with manually controlled cross‑travel and can be attached directly to the workpiece or mounted to a support structure for on‑site repairs, fabrication, and large‑component machining.

Key capabilities

• Portable 3‑axis milling for field and workshop use
• Longitudinal power feed; manual cross travel control
• Direct attachment to workpiece or mounting to support structure
• Multiple X‑axis travel options to suit job needs

Product advantages

• Precision design: Machined dovetail ways and adjustable gibs for smooth, accurate travel; gears and drives permanently lubricated and sealed for operation in any position.
• Power options: Spindle drives available in electric, pneumatic or hydraulic formats; feed options include manual, electric and pneumatic.
• Spindle variants: Standard 3/4 in Weldon shank spindle; optional HSK 40A spindle and HSK swivel plate for 360° spindle angles; extended ram available for HSK.
• Flexible setup: Cross slide permits mounting the spindle on either side of the bed; designed for quick attachment to workpiece or nearby support structure.
• Installation options: Beds available in 20, 49 and 78 in travel; optional sub‑plates for added bed rigidity.

Applications

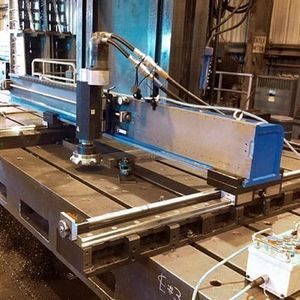

• Milling large or cumbersome parts directly on the workpiece
• Welding up and re‑machining worn components on production machinery (e.g., stamping presses)
• Machining motor mounts, pump bases and other components in tight or difficult locations

Specifications

• Max X‑axis travel: 20, 49 or 78 in (508.0, 1244.6 or 1981.2 mm)
• Max Y‑axis travel: 8 in / 12 in (203.2 mm with Weldon; 304.8 mm with HSK)
• Max vertical travel: 3/4 in / 4 in? (76.2 mm with Weldon; 101.6 mm with HSK)
• Spindle size: 3/4 in (19.1 mm Weldon); HSK 40A optional
• Spindle power options: Electric, Pneumatic, Hydraulic
• Feed options: Manual, Electric (infinitely variable 0–20 IPM with push‑button rapid traverse, 120 V or 230 V), Pneumatic
• Beds available: 20, 49, 78 in travel
• Optional accessories: HSK milling head, HSK swivel plate (360°), optional sub‑plates, extended ram
