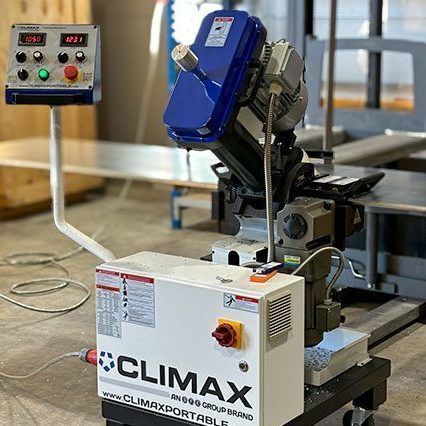

Edge milling machine EM90

Description
CLIMAX EM90 plate edge milling machine is an industrial cold-milling system designed to prepare weld-ready edges with precise, non-oxidized surfaces. The unit delivers consistent bevels from 0 to 90° and is available in two electric configurations for industrial fabrication environments.

Materials processed

• Iron and carbon steel
• Chromium steels
• Fine-grained steels
• Aluminium and aluminium alloys
• Copper and copper alloys

Applications

• Engineering and heavy machinery fabrication
• Steel structures and construction
• Pressure vessels and tank manufacturing
• Shipbuilding and offshore structures
• Aerospace structural components

Product advantages

• Precise beveling 0–90° for accurate V and Y preparations.
• Cold milling produces clean, non-oxidized edges compliant with welding requirements.
• High-quality surface finish from the precision milling cutter for consistent weld preparation.
• Clad removal capability up to 40 mm (1.6”) with the dedicated option for demanding fabrications.
• Processes a broad range of materials including steels, exotic alloys, aluminium and copper.
• Automatic feed system for hands-free operation with speeds up to 1500 mm/min to increase throughput.
• Real-time display of feed and cutting speeds on the machine screen for process control.
• Easy 0–90° angle adjustment with integrated angle ruler for fast, repeatable setups.
• Quick manual height adjustment to align with different plate thicknesses.
• Secure electric clamping system to stabilize the machine during milling operations.
• High-speed milling head with replaceable inserts to adapt to material types.
• Metal swivel castors and heat-resistant wheels for stable travel along the plate.
• Electric system available in 400 V or 480 V for industrial sites.
• Delivered ready-to-use with milling head, tool kit, metal wheels, documentation and protective wooden transport box.
• Optional transport box with ramp (Part No. EM90RB) for easier loading/unloading.
• Optional 90° clad-removal milling head (Part No. CL400R-63) with five screw-fixed inserts.

Technical specifications

• Model / references: EM90 — EM90400 (ELECTRIC 400 V) / EM90480 (ELECTRIC 480 V)
• Plate thickness range: 6 – 60 mm (0.236 – 2.362”)
• Max bevel width: 45 mm (1.77”)
• Min plate width: 200 mm (7.87”)
• Bevel angle: 0 – 90°
• Idle speed: 525 – 1050 rpm
• Torque: 35 Nm
• Feed speed: 0 – 1500 mm/min (0–59 ft/min)
• Max operating temperature: 55 °C
• Max acoustic emission: 75 dB
• Electric motor power: 4 kW
• Voltage: 400 V three-phase (also available 480 V)
• Frequency: 50 / 60 Hz
• Net weight: 262 kg (578 lbs)
• Packaging (standard box): 1000 x 800 x 1350 mm — packing weight: 396 kg (873 lbs)
• Packaging (box with ramp): 1140 x 1150 x 1620 mm — packing weight: 396 kg (873 lbs)
