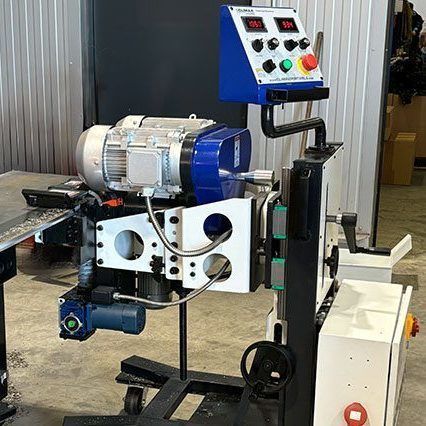

Edge milling machine EM60

Description
CLIMAX's automatic plate edge milling machine EM60 performs cold milling with high precision to produce non-oxidized surfaces suitable for welding preparation. The precision milling cutter delivers a consistent, high-quality finish. The milling head rotates 180° and the unit travels bidirectionally along the plate, enabling beveling on both sides without repositioning the plate.

Applications
Widely used in engineering machinery, steel structures, pressure vessels, shipbuilding and aerospace industries.

Product advantages

• Precise beveling 0–60° for V, Y, K and X bevel preparations.
• Cold milling process produces a clean, non-oxidized surface compliant with welding requirements.
• High-quality surface finish from a precision cutter improves weld-edge consistency.
• Processes multiple materials: steels, special alloys, aluminum and copper.
• Automatic feed up to 1500 mm/min for consistent, low-attendance operation.
• Real-time control of feed and cutting speeds displayed on the machine screen.
• Easy 0–60° adjustment with integrated angle ruler for fast, repeatable setup.
• Quick manual height adjustment to align with different plate thicknesses.
• Electric clamping system secures the unit to the plate for precise milling.
• High-speed milling head with replaceable inserts (8 inserts supplied).
• Reversible design with 180° rotation enables machining both sides without repositioning.
• Bidirectional travel along the plate reduces setup time and supports V, Y, X and K bevels.
• Metal swivel castors and heat-resistant wheels for stable positioning and travel.
• Electric motor available in 400 V or 480 V industrial variants.
• Complete ready-to-use package including milling head with 8 inserts, tool kit, metal wheels, documentation and wooden transport box.
• Optional transport box with ramp (Part No. EM60RB) for easier loading/unloading and protection during transport/storage.

Specifications (table)
DESCRIPTION | ELECTRIC 400V | ELECTRIC 480V
Part number | EM60400 | EM60480
Locking plate range | 0.236 – 3.150" / 6 – 80 mm | 0.236 – 3.150" / 6 – 80 mm
Max bevel width | 1.77" / 45 mm | 1.77" / 45 mm
Min plate width | 7.87" / 200 mm | 7.87" / 200 mm
Bevel angle | 0 – 60° | 0 – 60°
Idle speed | 525 – 1050 rpm | 525 – 1050 rpm
Torque | 35 Nm | 35 Nm
Feed speed | 0–59 ft/min / 0–1500 mm/min | 0–59 ft/min / 0–1500 mm/min
Max operating temperature | 55°C | 55°C
Max acoustic radiation | 75 dB | 75 dB
Electric motor power | 6 kW | 6 kW
Voltage | 400 V 3 phase | 400 V 3 phase
Electric frequency | 50 / 60 Hz | 50 / 60 Hz
Net weight | 773 lbs / 351 kg | 773 lbs / 351 kg
Packaging dimensions (standard box) | 49.2 x 31 x 58.3" / 1,250 x 800 x 1,480 mm | 49.2 x 31 x 58.3" / 1,250 x 800 x 1,480 mm
Packing weight (standard box) | 1,137 lbs / 516 kg | 1,137 lbs / 516 kg
Packaging dimensions (box with ramp) | 53 x 44 x 68" / 1,350 x 1,130 x 1,720 mm | 53 x 44 x 68" / 1,350 x 1,130 x 1,720 mm
Packing weight (box with ramp) | 1,137 lbs / 516 kg | 1,137 lbs / 516 kg

Technical characteristics / specifications

• Part number: EM60400 (400V) or EM60480 (480V)
• Locking plate range: 6 – 80 mm (0.236 – 3.150")
• Max bevel width: 45 mm (1.77")
• Min plate width: 200 mm (7.87")
• Bevel angle range: 0 – 60°
• Idle speed: 525 – 1050 rpm
• Torque: 35 Nm
• Feed speed: 0 – 1500 mm/min (0–59 ft/min)
• Max operating temperature: 55°C
• Max acoustic radiation: 75 dB
• Electric motor power: 6 kW
• Voltage: 400 V 3 phase (option 480V)
• Electric frequency: 50 / 60 Hz
• Net weight: 773 lbs / 351 kg
• Packaging (standard): 49.2 x 31 x 58.3" / 1,250 x 800 x 1,480 mm; packed weight 1,137 lbs / 516 kg
• Packaging (box with ramp): 53 x 44 x 68" / 1,350 x 1,130 x 1,720 mm; packed weight 1,137 lbs / 516 kg
• Reversible 180° milling head with replaceable inserts (8 supplied)
• Integrated electric clamping system
• Metal swivel castors and heat-resistant wheels
• Included accessories: tool kit, metal wheels, documentation, wooden transport box (option EM60RB)
