3-axis milling machine LM6200

gantryindustrialfor heavy-duty machining

Overview

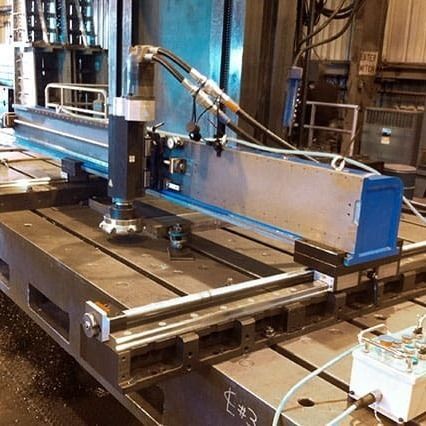

The CLIMAX LM6200 Linear Gantry Mill is CLIMAX’s most powerful portable milling machine, engineered for extreme accuracy, strength and configuration flexibility for large-scale on-site machining. The modular bed expands from 48 to 192 in (1219.2–4876.8 mm) and provides 32 to 152 in (812.8–4470.4 mm) of precise travel; solid bed options increase rigidity.

Key features

• Modular bed design: combine shorter bed sections to fit the work area while maintaining rigidity; connection plates and fasteners optimized for extended configurations.
• Powerful spindle options: supports cutter heads up to 10 in (254.0 mm); 25 Hp (18.6 kW) hydraulic power unit optional.
• Flexible configurations: convertible between linear and gantry milling; rails can split for gantry setup; electric feeds mountable on X, Y or Z.
• 360° rotating milling head and optional swivel plate; optional Z-axis slide assembly for side milling and extended strokes.
• Reduced Friction Rail Technology: precision rails with advanced lubrication and ball screws for smooth, non stick-slip travel.
• Applications: milling, drilling and boring in horizontal, vertical or inverted orientations.

Product advantages

• Rigid, modular design: modular bed geometry and reinforced connections deliver high stiffness across extended lengths.
• Powerful, precise machining: heavy-duty spindle and HPU option enable aggressive cutting with high repeatability.
• Flexible operation: fast reconfiguration between linear and gantry modes; multiple feed mounting options and 360° head rotation.
• Lower maintenance: reduced-friction rails and precision ball screws minimize wear and service needs.

Specifications
Max. X-Axis Travel — 176″ / 4470.4 mm
Max. Y-Axis Travel — 106″ / 2692.4 mm
Max. Vertical Travel — 8″ / 203.2 mm
Spindle Size — 4 – 10″ / 101.6 – 254.0 mm
Power Option — Hydraulic

Technical specifications

• Model: LM6200
• Brand: CLIMAX
• Bed expansion: 48 to 192 in (1219.2 to 4876.8 mm)
• Travel provided: 32 to 152 in (812.8 to 4470.4 mm)
• Hydraulic Power Unit option: 25 Hp (18.6 kW)
• Optional accessories: swivel plate; Z-axis slide assembly
• Rail system: reduced-friction rails with advanced lubrication
• Drive: precision ball screws on X, Y and Z axes
• Operations: milling, drilling, boring; linear or gantry configurations
