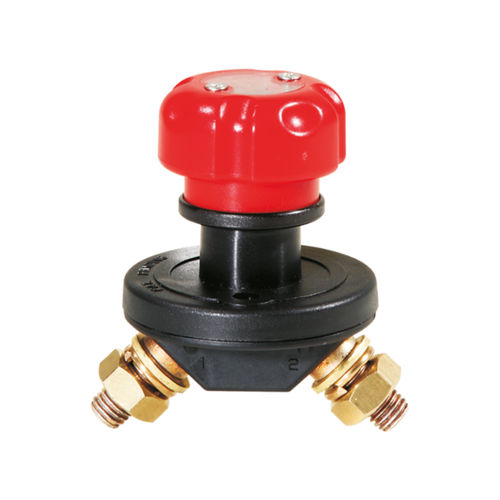

Battery main switch 1020363
IP65

Battery main switch - 1020363 - C.O.B.O. SpA - IP65
Battery main switch - 1020363 - C.O.B.O. SpA - IP65
Battery main switch - 1020363 - C.O.B.O. SpA - IP65 - image - 2
Battery main switch - 1020363 - C.O.B.O. SpA - IP65 - image - 3
Battery main switch - 1020363 - C.O.B.O. SpA - IP65 - image - 4
Add to favorites
Compare this product

Characteristics

Type
battery
Protection level
IP65
Primary current

150 A

VAC

12 V

VDC

24 V

Description

Battery cut-off switch 1020363 is screw fixed; it operates at a supply voltage of 12V and 24V. The switch features a push-button operating handle; operating temperature range: between -30 and 60°C, maximum direct current: 150A. Protection rating: IP65. OPERATING TEMPERATURE - -30 ÷ 60°C EXTRACTABLE HANDLE - NO TYPE - BATTERY MAIN DRIVE HANDLE - BUTTON SUPPLY VOLTAGE - 12V 24V FIXING - SCREWS PEAK CURRENT - 1200 A x 5 SEC. CONTINUOUS MAX CURRENT - 150A
