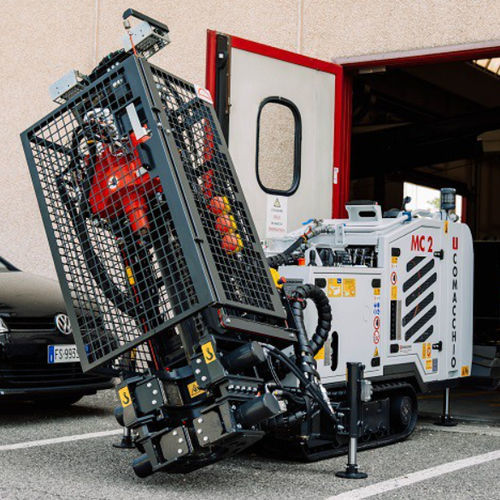

Micropile drilling rig MC 2

rotary

The MC 2 is a compact drilling rig designed to effectively tackle the challenges of ground improvement and underpinning work, even in extremely confined spaces. With ultra-compact dimensions (700 x 3,000 x 2,155 mm), a lightweight structure, and an extendable rubber track undercarriage, the MC 2 is easily adaptable to confined and hard-to-reach spaces and ensures excellent maneuverability. The rig can be equipped with rotary head or hydraulic hammer, depending on the drilling task. The MC 2 features an advanced control system that optimizes performance, enables remote diagnostics, and supports connectivity. Max Width - 700 - 730 mm - 2.3 - 2.4 ft Mast Feed - 1.000 - 2.250 mm - 3.3 - 7.4 ft Feed Force - 2.500 daN - 5,620 lbs Retract Force - 2.500 daN - 5,620 lbs Rotary Torque - 225 - 430 daNm - 1,660 - 3,170 lb*ft Rotary Speed Range - 80 - 810 rpm Clamp Range - 45 - 160 mm - 1.8 - 6.3 in
