Tie-back anchoring drilling rig MC 15

stabilizationdeep-stabilizationgeotechnical

Overview

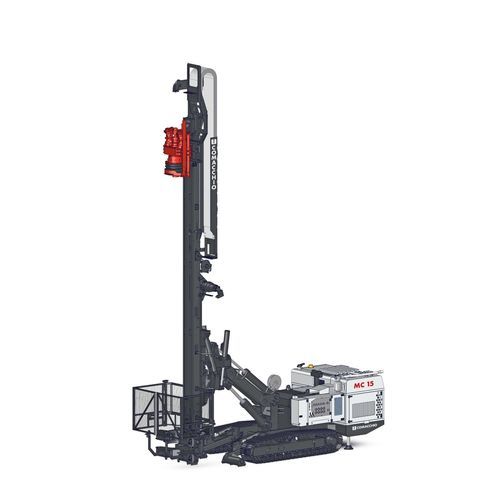

The MC 15 is a compact yet powerful crawler drilling rig from Comacchio, designed for a wide range of foundation and ground stabilisation works. Its fully articulated kinematics enable extensive working envelope and multiple mast inclinations without re‑pinning, improving positioning speed and operational flexibility on confined sites.

Main capabilities and systems
The MC 15 incorporates a modular hydraulic architecture to accept various equipment: rotary heads, hydraulic hammers, dual‑head systems, water and mud pumps, and several rod loader options. Configurations support automation of rod handling to boost productivity and safety. Telescopic mast extensions allow jet grouting operations in a single pass to depths up to 19 m.

Primary applications

• Micropiles
• Anchors
• Soil nailing
• Jet grouting (single-pass up to 19 m)
• Foundation works and ground stabilisation

Notable features

• Fully articulated kinematics for a large working envelope and variable mast inclinations without re‑pinning
• Modular hydraulic architecture for multiple equipment configurations (rotary heads, hammers, dual‑heads, pumps, rod loaders)
• Support for automated rod handling to increase productivity and operator safety
• Telescopic mast extensions for deep jet grouting (single‑pass capability)

TECHNICAL SPECIFICATIONS (table)
Overall Track Width : 2.300 mm (EU) — 7' 6" (US)
Diesel Engine Power : 119 - 140 kW (EU) — 160 - 188 HP (US)
Emission Standards : Stage 3A/Tier 4i - Stage 5/Tier 4f (EU & US)
Retract Force : 8.000 daN (EU) — 17,985 lbs (US)
Feed Force : 8.000 daN (EU) — 17,985 lbs (US)
Feed Stroke : 4.000 - 7.000 mm (EU) — 13'1" - 22'11" (US)
Torque Range : 1.300 - 2.900 daNm (EU) — 9,588 - 21,389 lb*ft (US)
Speed Range : 100 - 350 rpm (EU & US)
Clamping Range : 45 - 530 mm (EU) — 1"3/4 - 1'8" (US)
Weight Range : 15 - 17 t (EU) — 33,070 - 37,480 lbs (US)

DOUBLE HEAD SET-UP (table)
Max. Torque Upper Head : 1.350 daNm (EU) — 9,957 lb*ft (US)
Max. Torque Lower Head : 2.900 daNm (EU) — 21,389 lb*ft (US)
Mast Feed Stroke : 3.550 - 6.550 mm (EU) — 11'7" - 21'5" (US)

JET GROUTING SET-UP (table)
Max. Depth Single Pass : 19.000 mm (EU) — 62'4" (US)
Max. Rod Size : 114 mm (EU) — 4"1/2 (US)

Characteristics / Technical specifications

• Model: MC 15
• Manufacturer / Brand: Comacchio
• Engine power: 119–140 kW (160–188 HP)
• Feed retract and feed force: 8,000 daN (17,985 lbs)
• Torque (single/dual head): up to 1,300–2,900 daNm (9,588–21,389 lb*ft)
• Feed stroke: 4,000–7,000 mm (13'1"–22'11") — mast stroke for double head: 3,550–6,550 mm (11'7"–21'5")
• Jet grouting single-pass depth capability: up to 19,000 mm (62'4") using telescopic mast extensions
• Clamping range: 45–530 mm
• Typical operating weight: 15–17 t
• Primary uses: micropiles, anchors, soil nailing, jet grouting, foundation and ground stabilisation
