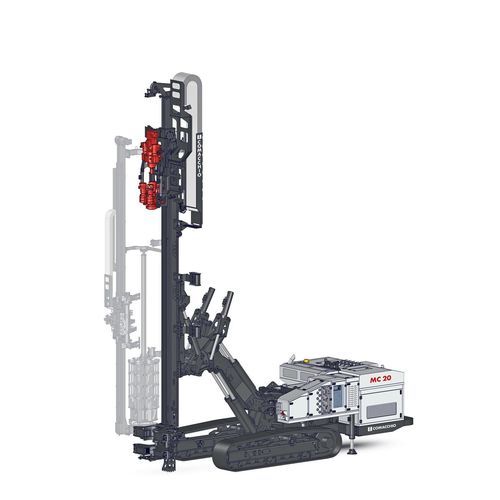

Stabilization drilling rig MC 20

geotechnicalpilingmicropile

Product overview
The MC 20 is a hydraulic drilling rig combining compact dimensions with a modular hydraulic architecture that supports a wide range of drilling heads and accessories. It features fully articulated kinematics for extended mast positions and a large working envelope. The machine can be configured for single-head or dual-head operation and integrates with auxiliary equipment such as water/mud pumps, cranes and rod/casing loaders.

Applications

• Micropiles
• Anchors / tiebacks (including simultaneous drilling and casing with dual-head systems)
• Soil nailing
• Foundation and ground stabilization works
• Retaining wall strengthening in deep excavations

Main features

• Fully articulated kinematics providing multiple mast positions and an extended working envelope
• Modular hydraulic system accommodating diverse drilling heads and simultaneous accessories
• Compatibility with hydraulic drifters and dual-head systems
• Quick conversion between single-head and double-head configurations
• Optional duplex carousel (up to nine pairs of rods and casings) or rack-type loader (up to 18 rods onboard)
• Undercarriage with oscillating tracks for enhanced stability, traction and mobility on uneven or sloping terrain
• Designed for flexible operation across drilling applications

Double head set-up (summary)
Max. Torque Upper Head: 1.350 daNm (EU) / 9,957 lb*ft (US)
Max. Torque Lower Head: 2.900 daNm (EU) / 21,389 lb*ft (US)
Mast Feed Stroke: 5.500 - 6.900 mm (EU) / 18' - 22' 8" (US)

Automatic rod & casing carousel system (summary)
Rod Size Min./Max.: 76 - 142 mm (EU) / 3" - 5" 1/2 (US)
Casing Size Min./Max.: 114 - 204 mm (EU) / 4" 1/2 - 8" (US)
Length: 3 - 3.5 m (EU) / 10' - 11' 5" (US)
Max. Capacity: 9 + 1 (number of pairs)

Technical characteristics / specifications

• Overall Track Width: 2.500 mm (EU) / 8' 2" (US)
• Diesel Engine Power: 209 kW (EU) / 280 HP (US)
• Emission Standards: Stage 5 / Tier 4f
• Retract Force: 12.500 daN (EU) / 28,100 lbs (US)
• Feed Force: 12.500 daN (EU) / 28,100 lbs (US)
• Feed Stroke: 5.600 - 7.000 mm (EU) / 18' 5" - 22' 11" (US)
• Torque Range: 2.050 - 3.700 daNm (EU) / 15,120 - 27,290 lb*ft (US)
• Speed Range: 60 - 120 rpm
• Clamping Range: 45 - 435 mm (EU) / 1" 3/4 - 1' 5" (US)
• Weight Range: 20,5 - 22 t (EU) / 45,200 - 48,500 lbs (US)
