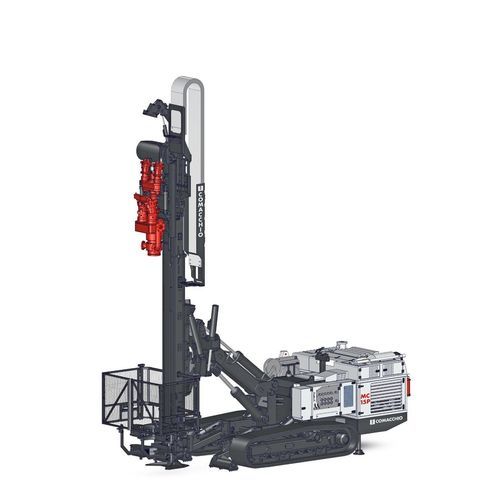

Tie-back anchoring drilling rig MC 15P

stabilizationpilingmicropile

Overview
The MC 15P is a high-performance hydraulic drilling rig derived from the MC 15 design. It is powered by a superior-class diesel engine and a high-performance hydraulic system with electronic power management. The machine supports rotary, rotary-percussion and rotary-vibration drilling techniques and is configurable for dual-head and jet-grouting operations. The standard undercarriage features oscillating tracks to maintain ground contact and stability on uneven or sloping terrain.

Key capabilities and intended uses

• Drilling techniques: rotary, rotary-percussion, rotary-vibration
• Applications: micropiles, anchors, soil nailing, jet grouting, foundations and ground stabilization
• Dual-head drilling system available for simultaneous drilling and casing (rotary/rotary or rotary/drifter)
• Electronic power management for optimized hydraulic performance under variable load
• Undercarriage with oscillating tracks as standard for mobility and stability on difficult ground

Performance highlights

• Diesel engine power class: 205 kW (278 HP) with Stage 5 / Tier 4f emission standard
• Wide feed and torque ranges to handle varied ground conditions and tool sizes
• Configurable for double-head and jet-grouting set-ups for specialized foundation works

Technical specifications

• Overall Track Width: 2,300 mm (7' 6")
• Diesel Engine Power: 205 kW (278 HP)
• Emission Standards: Stage 5 / Tier 4f
• Retract Force: 8,000 daN (17,985 lbs)
• Feed Force: 8,000 daN (17,985 lbs)
• Feed Stroke: 4,000 - 7,000 mm (13' 1" - 22' 11")
• Torque Range: 1,700 - 2,900 daNm (12,539 - 21,389 lb·ft)
• Speed Range: 200 - 260 rpm
• Clamping Range: 45 - 530 mm (1" 3/4 - 1' 8")
• Weight Range (machine): 17 - 19 t (37,480 - 41,890 lbs)
• DOUBLE HEAD SET-UP — Max. Torque Upper Head: 1,350 daNm (9,957 lb·ft)
• DOUBLE HEAD SET-UP — Max. Torque Lower Head: 2,900 daNm (21,389 lb·ft)
• DOUBLE HEAD SET-UP — Mast Feed Stroke: 3,800 - 6,550 mm (12' 5" - 21' 5")
• JET GROUTING SET-UP — Max. Depth Single Pass: 19,000 mm (62' 4")
• JET GROUTING SET-UP — Max. Rod Size: 114 mm (4" 1/2)
