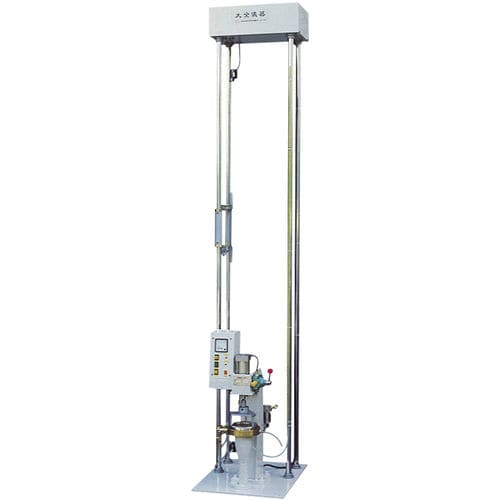

Hydrostatic pressure testing machine QC-317A

for textilesfor the textile industry

This tester can add water pressure in constant rate on tarpaulin, when water drop penetrate from tarpaulin, at this moment the pressure is hydrostatic pressure characteristic of tarpaulin. 1. Water pressure method: Water level increase at speed of 1cm/sec. When three points penetration happen, record the highest level. ( this is the most common method) 2. Fixed water pressure method: Water level increase to a particulate level at speed of 1cm/sec. record the time when three points penetration happen. 3.Leakage method：Water level increase to particular level and stop immediately and then observe how much water leaking (ml) within a regulative period. Key Words: Water Resistance Tester, Water Permanence, Hydrostatic Pressure Tester, aatcc 127, Textile Test, Textile Test Item, Test Machine, Test Equipment,Tester. Specifications Test specimen 8inch x 8inch (about 20cm) Pressing area 4.5inch (about 114mm) Grip method: pneumatic Pneumatic, able to preset gripping strength. Water pressure height 0~1800mmH2O(With scale) Pressure speed 5~30mmH2O/sec(Adjustable) Upper/lower limit switches are for protecting the machine Upper/lower limit switches are for protecting the machine. Lower limit is zero point of water level and this tester must return to zero point before performing next test to ensure accuracy of each test. With quick return control to avoid waiting for a long time for stand-up With quick return control to avoid waiting for a long time for stand-up Dimension 65×70×285cm (W×D×H) Weight 125 kg
