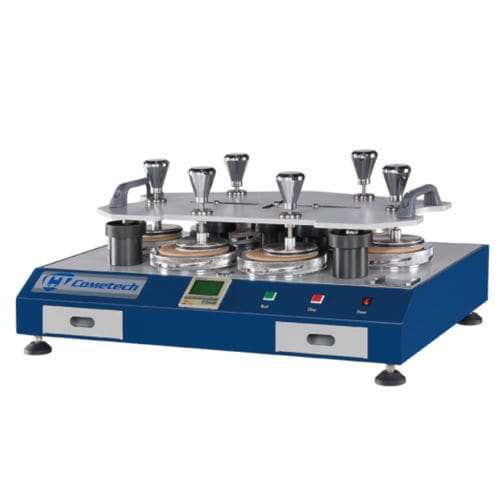

Abrasion testing device QC-341

for textilesfabricfor the textile industry

This machine is ideal for determining the abrasion resistance of paper, lining, socking, and similar types of shoe materials, particularly those made of fabric. The specimens are capably tested for four pieces per time and are rubbed over the abrasive in all directions in a complex, repetitive pattern (a Lissajous figure) and at the same time, the holder rotates. Key Word:Abrasion Test, Abrasion Tester, Abrasion Resistance Test, Scheuerprufung Abrasion Test, Scheuerprufung Abrasion Tester, Abrasion Resistance Tester, Textile Test, Textile Test Item, Test equipment, Tester Specifications Station 6 Station Load Weight 2.5kg x 1 Counter 0~999999 Load of Abrasion Test a. Fabric: 198g±2g b. Clothing: 395g±2g(9Kpa) c. Decorations: 549g±2g(12Kpa) Load of Pilling Test a. Fabric: 155g±1g b. Clothing: 260g±1g Platen Weight 2385g±10 Sample Size φ120 Diameter of Abrasion Head a. Abrasion Test: φ28.65mm b. Pilling Test: φ90mm Head 47.5±2.5r/min Dimension 720 x 505 x 420 mm Weight 115kg Power AC 220V/ 50H
