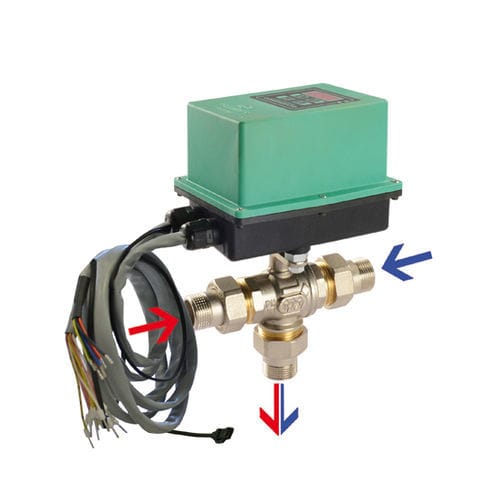

Ball valve COMPAMIX PRelectrically-actuatedfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- for control
- Media
- for water
- Body
- female-female
- Applications
- heating
- Material
- brass
- Number of channels
- 3-way
- Other characteristics
- thermal
- DN
32 mm, 40 mm, 50 mm
(1.26 in, 1.575 in, 1.969 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: -10 °C
(14 °F)- Flow rate
27.2 m³/h, 47.3 m³/h, 73 m³/h
(960.56 ft³/h, 1,670.38 ft³/h, 2,577.97 ft³/h)
Description
Thermal regulation in UNDERFLOOR SYSTEMS
Mixing thermoregulating actuator with electronics onboard
Temperature control:
Fixed-point or climatic HEATING
Fixed-point or dew-point temperature trackingt COOLING
Summer winter switching
Semiconductor temperature sensor
Remote management with Modbus-RTU protocol
