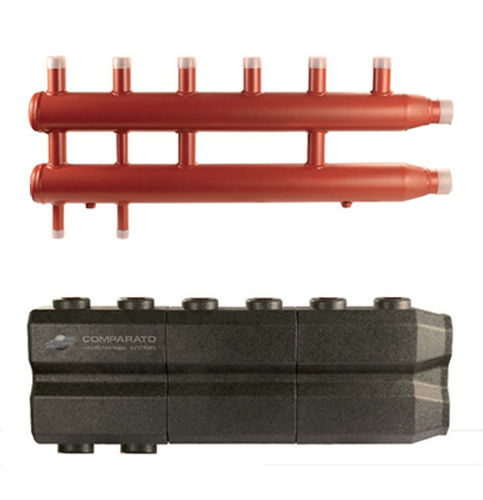

Multi-channel manifold C series
carbon steelthreadedfemale

multi-channel manifold
multi-channel manifold
Add to favorites
Compare this product


Number of channels
carbon steel
Other characteristics
threaded, female, for heating, industrial
Port size

1 in


NUT FEMALE Ø 1″ OUTLET 125 mm interaxis dual manifold for heating plant with nut outlet Carbon steel Insulation Fixing kit Out-of-standard products can be realised according to Customer’s requirements Diacol 125 mamfolds are specifically used in: • - zone heating/cooling Systems • - Systems using alternative energy • - industrial Systems in general using hot and cold fluids • - with pump groups with 125-mm span TECHNICAL FEATURES • - Maximum fluid température: 90 °C • - Maximum fluid pressure: 5 bar • - Material: carbon Steel EN 10255 • - Paint: water-based primer, red ACCESSORIES FIXING KIT Made of two painted Steel support brackets with slots in order to simplify the assembling. two threaded bars mlO four nuts and four expansion bolts O 10 x 80 mm with screws for a safe wall anchoring. SHELL INSULATION in expanded polypropylene (EPP) (density 30 Kg/m3). jointed.
