Multi-channel manifold C series

carbon steelthreadedindustrial

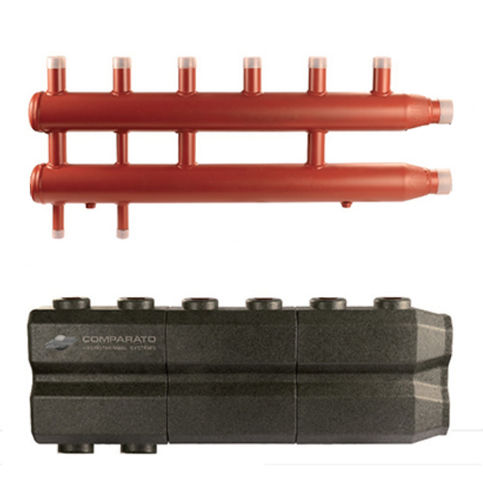

THREADED MALE Ø ¾” OUTLET 125 mm interaxis dual opposed manifold for heating plant with threaded outlet Insulation Fixing kit Out-of-standard products can be realised according to Customer’s requirements Diacol 125 manifolds are specifically used in: zone heating/cooling systems systems using alternative energy industrial systems in general using hot and cold fluids with pump groups with 125-mm span maximum fluid temperature: 90 °c material: carbon steel en 10255 paint: water-based primer, red made of two painted steel support brackets with slots in order to simplify the assembling, two threaded bars m10 four nuts and four expansion bolts Ø 10 x 80 mm with screws for a safe wall anchoring. Diacol 140 manifolds are specifically used in: zone heating/cooling systems systems using alternative energy industrial systems in general using hot and cold fluids
