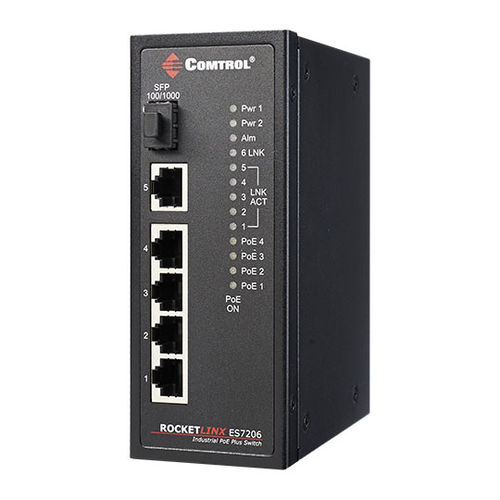

Unmanaged switch RocketLinx ® ES7206-XT

6 portsgigabitDIN rail

RocketLinx ® ES7206-XTUnmanaged PoE Industrial switch, with four Gigabit 802.3af/at PoE ports, one copper Gigabit uplink port and one Gigabit fiber SFP port. This rugged 6-port Gigabit PoE Plus Switch is built for harsh conditions and will operate from -40°C to 75°C.Part Number: 32015-9 Unmanaged, "Plug and Play" installation for quick setup and deployment Four (4) Gigabit IEEE 802.3af/at PoE ports One (1) Gigabit copper uplink port One (1) SFP uplink port supporting multi-mode or single-mode fiber connections Voltage Boost Technology enabling direct 12-36 VDC input supporting vehicle/access control/factory electrical systems 9KB jumbo frame support with wire speed performance User configurable multi-event alarm relay Rugged industrial design with IP30 steel housing IP30 rugged steel housing -40°C to 75°C extended operating temperature range for deployment in harsh environments Ideal for IP surveillance, rail, transit, traffic, mining, and other demanding PoE applications RoHS 2 compliant under CE The RocketLinx ES7206-XT is an industrial-grade, 802.3af/at PoE Plus switch designed for integration of mission-critical PoE devices in IP security, access control, in-vehicle, and intelligent transportation systems. The ES7206-XT features four Gigabit speed, high-power 802.3af/at ports, Gigabit copper and SFP fiber uplink ports, and a full 120W power budget for maximizing PD power delivery to devices such as PTZ cameras. A compact, DIN rail mount housing, extended operating temperature, and wide 12-36V input voltage range enable the ES7206 to satisfy the widest variety of PoE integration requirements.
