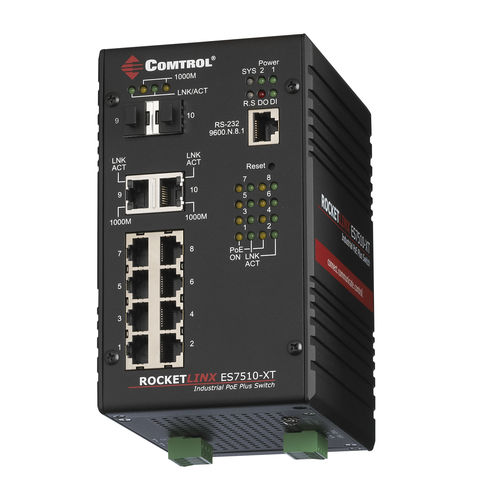

Managed switch RocketLinx® ES7510-XT

10 portsgigabitPoE

RocketLinx® ES7510-XTManaged Power over Ethernet Industrial managed switch, eight PoE Plus ports and two Gigabit ports, IEEE 802.3af and IEEE 802.3at compliant, extended operating temperature range. Pepperl+Fuchs Comtrol's rugged Power over Ethernet switches stand up to hot, cold and harsh conditions.Part Number: 32046-3 Integrate IP cameras, access points and other PoE devices Eight 10/100BASE-TX PoE Plus ports and two Gigabit RJ45/SFP combo ports featuring Digital Diagnostic Monitoring (DDM) PoE ports support both IEEE 802.3af (15.4W) and the latest high power IEEE 802.3at standards (30W) Eco-Friendly Power Budget Efficiency Mode TACACS+ support Easy setup and administration via PortVision DX application, web page or Cisco-like command line interfaces Advanced redundant ring support with 5ms recovery time, for up to 4 x 100M rings plus two Gigabit uplink rings Advanced security features include Port Security, Access IP List, HTTPS and SSH login SNMP and IEEE 802.1AB LLDP for network management Tag-VLAN supporting multiple VLAN traffic isolation LACP port trunking for bandwidth aggregation to support video surveillance Redundant DC power inputs and multiple event relay output for advanced device alarm control Extended operating temperature -40° to 75°C NEMA TS2 compliant RoHS 2 compliant under CE IPv6 support
